TOP 5 OF NOVEMBER 2022
THE MOST REQUESTED PRODUCTS BY TECNOLOGIX CUSTOMERS
Arm KEIL - MDK ESSENTIAL
The complete software development solution for Arm Cortex-M based microcontrollers
• Arm Keil MDK includes a leading Windows – based IDE, debugger, market leading compilers, software pack management and CMSIS
• These software tools allow you to accelerate the development of your embedded software projects
• Widest support for Arm-based microcontrollers (MCUs), with over 5.000 devices in the database
• Royalty-free software building blocks and real-time operating system (RTOS) integration
• Industry leading C/C++ compilation tools developed by Arm
• Accurate simulation models of Arm CPUs (Cortex-M only)
• Work with the ULINK family of debug and trace adapters, or 3rd party debug probes.
TECNOLOGIX - Programming using KEIL MDK
This workshop is aimed to firmware developers using the KEIL MDK-ARM Development Tool
• During the first day, the full firmware lifecycle is experienced, from creating a project, making use of the ARM Compiler toolchain to create the binaries and programming the target, up to using the uVision debugger to debug the object code.
• The second day covers the Arm RTX Realtime Operating System and the Middleware libraries, using a comprehensive set of hands-on examples to exercise the basic capabilities of the libraries.
• Hands-On training is based on STMicroelectronics STM32F746G DISCOVERY board.
IXXAT - USB to CAN V2
Active USB interface - 2XCAN (High/ Low-Speed), LIN
• With up to two CAN High Speed channels, one CAN Low Speed channel. And a LIN channel, depending on the device variant,
a wide variety of applications can be addressed by the USB-to-CAN V2 adapter-in both the industrial and the automotive sectors.
• The USB-to-CAN V2 adapter is available in different variants.
• In the USB-to-CAN V2 compact variant, the CAN connection is implemented as a D-SUB 9 plug or alternatively as an RJ45 connector. For devices with two CAN interfaces, these are implemented as RJ45 connectors.
• Adapter cables to sub-D9 plugs are included with devices. The IXXAT USB-to-CAN V2 embedded is designed without a housing, with or without a slot board and adapter USB cable for installation into a computer.
• Additional options include galvanically isolated CAN interfaces, bulk variants, and support for ISO 11898-3 low-speed CAN and LIN.

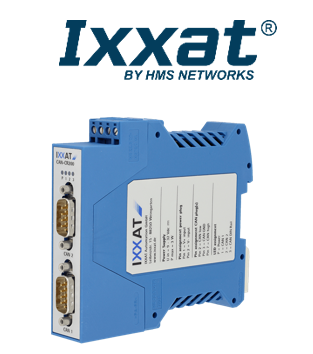

IXXAT - CAN CR200
Modular ISO11898-2 CAN repeater with backbone bus
• The CAN-CR200 is used for the galvanic isolation of two segments of a CAN network and for creating star or tree topologies. Several CAN-CR200 can be connected to a CAN-hub via the integrated backbone bus.
• One special feature of the REPEATER is the automatic recognition and separation of a defective segment from the rest of the network so that the remaining network can continue working. After elimination of the defect, the segment is switched into the network again.
• The galvanic isolation isolates the CAN segments from each other as well as from the power supply.
PORT - PROFINET Protocol Stack/Libraries
This solution supports the GOAL approach by port – a comprehensive development system that allows for creating Multi Protocol support in one single design
• The GOAL includes an option to manage an external Layer 2+ managed Ethernet Switch Controller. GOAL: Creating connectivity for Industrial Ethernet does not only consist from setting up a piece of Source Code – it is rather a product philosophy from Top to Bottom.
• PROFINET comes with the requirement to pass very challenging Netload Test procedures. For this GOAL needs to change the Layer 2 Ethernet driver, implementing advanced buffering mechanisms, the GOAL driver needs to bypass the cyclic PROFINET frames alongside the TCP/IP Stack and the TCP/IP stack needs to be enabled to handle the Netload Test traffic. GOAL needs to embed all of this into the framework by STMicro.
• The GOAL driver can as a "Side Effect" be enabled to manage a L2+ managed Ethernet Switch.
TOP 5 OF OCTOBER |
