How it Works

Version 5.5.0 – Released January 31, 2025 – CT21 Conformant

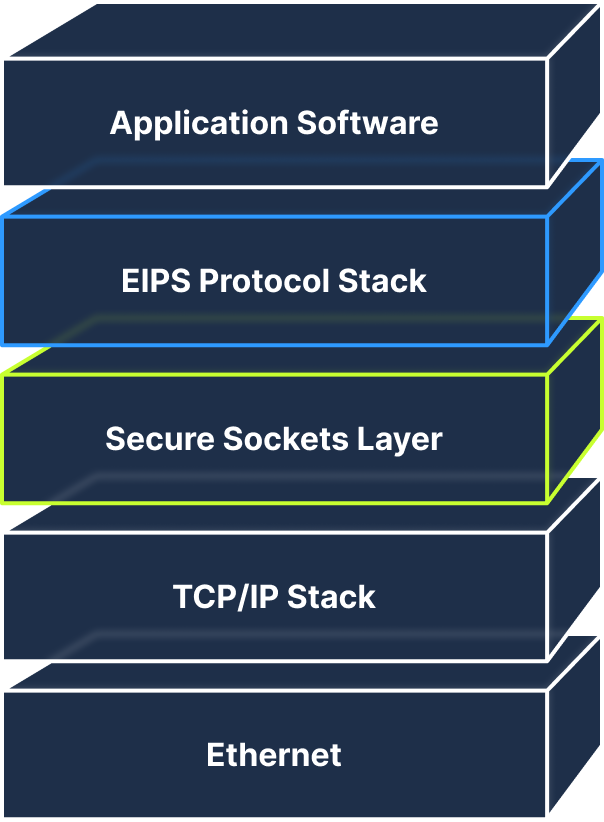

The EIPS stack provides EtherNet/IP I/O Server, I/O Client, Message Server, and message Client functionality.

It also provides a logical and manageable Application Programming Interface (API) for interfacing to your application code. It utilizes the standard Windows TCP/IP stack so it can originate, as well as act as a target for, EtherNet/IP connections and messages.

The EIPS Scanner Class protocol stack can originate a variety of I/O connections based on the user connection configuration set locally via the stack API or remotely over the network via the EIPS Connection Configuration Object (CCO). The CCO provides the interface necessary for software tools.

The EIPS comes with 12 months of download access to the latest version and built in phone/email tech support.

Additional service options are available to assist you with EtherNet/IP requirements, design, EIPS Stack Integration, pre-conformance testing and more.

Supported/Included Objects

Message router
Connection manager
Port
DLR**
CIP Sync**
Modbus translator
Ethernet link
TCP/IP
Connection configuration object
Assembly
Identity
File object
Class 0 support
Energy object
LLDP objects
User defined objects

** These objects are for configuration only. No DLR or IEEE 1588 software or hardware is provided

Caratteristiche e Benefici

Features

Version 5.5.0
Tested with ODVA CT21
Supports:
- TCP/IP object revision 2
- Ethernet link object revision 4
- “Big 12” Diagnostics
- Identity object revision 2
- Adds Identity object Catalog Number (21) Manufacture Date (22) attributes as default attributes
- SetIdentityExplicitProtectionMode API to allow the application to control the explicit Protection Mode
- Assembly object revision 3
- Full support for Dynamic assemblies
EIPS-SECURE feature updates

Benefits

High performance
Out-of-the-box examples
Simplified porting
Minimized resources
Rich set of features
Scalable
Secure

Specifiche

Components

Example scanner class Demo application (binary and source provided)
EIPS Scanner DLLs (32 & 64 bit) with C++ function call API and C# API for Windows and .NET applications
EIPS Getting Started and Software Reference manuals
Sample SOC files for pre-conformance testing
Application notes with code samples
Sample EDS files

Compatibility, Resource Utilization, & Management

Compatibility

Tested with ODVA CT20
Enables EtherNet/IP Scanner Class and/or Adapter Class functionality
UCMM (unconnected) messaging client and server
Class 3 (connected) messaging client and server
Class 1 (I/O) connection client and server
CIP Security*

Platform compatibility

Standard Windows TCP/IP stack and PC / Laptop Ethernet NICs
Microsoft Windows 7, 8.x, 10, and 11
32 and 64 bit DLLs included

Resource utilization and management

All resources initialized at startup
No dynamic memory or thread allocation
Stack runs on a single thread
Dynamic registration of additional objects for client application processing

* The EIPS-SECURE package is required to enable CIP Security features using the SSL Library you provide

Optional EIPS add-ons

We also offer add-ons to address your specific needs, along with services including consulting, implementation, and support to ensure you maximize connectivity.
