How it Works

Version 5.5.0 – Released January 31, 2025 – Tested with ODVA CT21

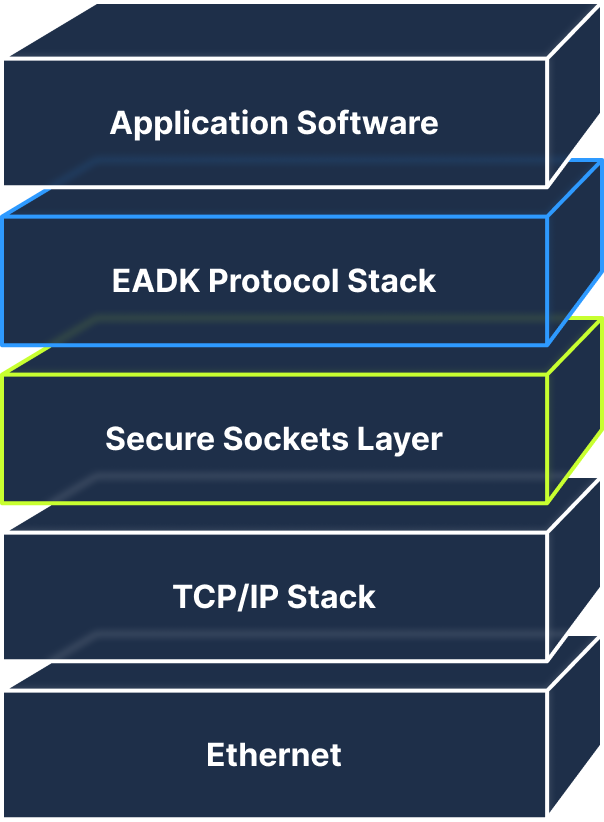

Our EADK stack provides complete Adapter Class functionality for EtherNet/IP connections and messaging.

It provides a logical and manageable API for interfacing to your application code and utilizes the sockets interface of your products TCP/IP stack for TCP and UDP messaging.

The EADK comes with 12 months of download access to the latest version and built in phone/email tech support.

Additional Services options are available to assist you with EtherNet/IP requirements, design, EADK Stack integration, pre-conformance testing, and more.

Pyramids EADK is distributed under a royalty free software license agreement.

Supported/Included Objects

Message router
Connection manager
Port
Identity
Ethernet link
TCP/IP
QOS
DLR***
CIP Sync****
Assembly
File object
Class 0 support
Energy object
LLDP objects
User Defined objects

***Configuration object only. DLR Stack and Switch hardware not included
****Configuration object only. IEEE 1588 stack not included

Caratteristiche e Benefici

Features

Tested with ODVA CT21
Supports
- TCP/IP object revision 2
- object revision 2
- Ethernet Link object revision 4
- “Big 12” Diagnostics
- Added Identity Object Catalog Number (21) and Manufacture Date (22) attributes to the default attributes
- SetIdentityExplicitProtectionMode API to allow the application to control the explicit Protection Mode
- Assembly object revision 3
- Full support for Dynamic assemblies
Customize the number of connections, requests, etc. from build time parameters
EADK-SECURE feature updates
New ExDK-SAFETY code compatibility option as of version 5.2

Benefits

CIP secure connections
High performance
Out-of-the-box examples
Simplified porting
Minimized resource use
Rich set of features
Scalable

Specifiche

Components

EtherNet/IP Adapter-Class Protocol Stack ‘C’ Source Code designed for portability
EADK Adapter DLLs (32 & 64 bit) with C++ function call API, C# API for Windows / .NET applications
EADK Getting Started, Software Reference Manuals and Porting Guide
Adapter Class example code
Sample Platform files
Sample EDS files
Sample SOC files for pre-conformance testing

Compatibility, Resource Utilization, & Management

Compatibility

Tested with ODVA CT20
Enables EtherNet/IP Adapter Class functionality
UCMM (unconnected) message client and server
Class 3 (connected) message server
Class 1 (I/O) connection server
CIP Security Option available*
CIP Safety Option available**

*The EADK-SECURE package is required and an SSL you provide
** ExDK-SAFETY-EADK Source Code Option to enable the EADK stack to work with HMS/IXXAT’s CIP Safety solution purchased separately

Platform, OS, and TCP/IP stack compatibility and portability

“Platform file” approach separates routines into a single set f platform files to simplify porting
Sample platform files provided
Stack core source is ‘C’ code for portability
Included 32/64 bit DLLs are compatible with Windows 7, 8.x, 10, and 11 for developing Windows and .NET applications
The EADK source code is designed using an object-oriented approach. It’s building blocks, such as TC/IP sessions, CIP connections, explicit requests and all implemented CIP objects, including assemblies, are grouped into separate modules with corresponding functionality. This allows for easy understanding and debugging of the source code

Resource utilization and management

All resources initialized at stack startup
No dynamic memory or thread allocation
Runs on a single thread
Scalable for optimizing resou

Optional EADK add-ons

We also offer add-ons to address your specific needs, along with services including consulting, implementation, and support to ensure you maximize connectivity.
