IXXAT CAN-IB400/PCI

Active CAN Interface for PCI
1-4 x CAN (High-/Low-Speed), LIN

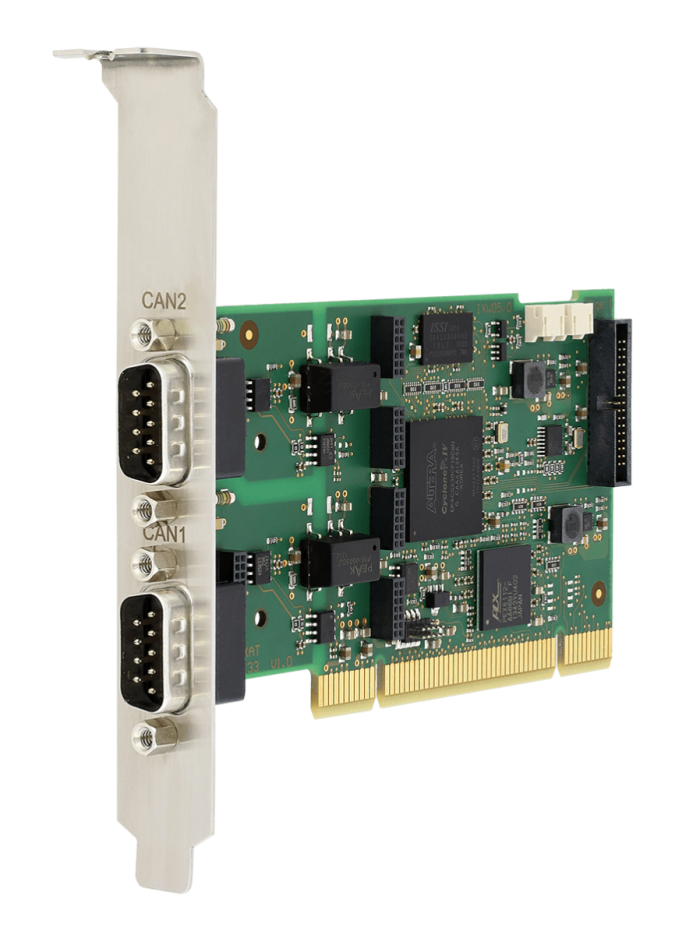

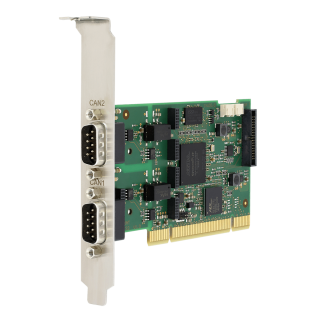

With the CAN-IB400/PCI HMS offers an PCI interface board based on a modern and highly modular concept. The board covers the entire range of field buses, such as CAN (ISO 11898-2), fault tolerant CAN (ISO 11898-3) and LIN.

The CAN-IB400/PCI is available with up to four CAN channels and with galvanic isolated interfaces. For use in the automotive field the high-speed CAN channels can optionally be switched to low-speed CAN via software. In addition, the card can be equipped with up to four LIN interfaces. Furthermore, the modular architecture of the PCI interface card enables the easy extension with customer specific interfaces via piggyback modules.

Due to the high number of interfaces, the board is also suitable for demanding applications - such as

• test benches,
• handling systems or
• manufacturing plants.


If necessary, the number of interface channels can be extended by using multiple cards within one PC.

The board is supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite.

PC bus interfacePCI (V2.2)
PC address rangePlug & Play
InterruptsPlug & Play
Microcontroller32 bit microcontroller
CAN interface1, 2 or 4 CAN interfaces; CAN 2.0 A/B; Sub-D9 plug according to CiA 303-1
Optional: CAN Low-Speed (switchable via software between CAN High-Speed and Low-Speed)
Optional: Galvanic isolation (1 kV, 1 sec.)
LIN/K-Line interfaceOptional:up to 4 LIN (ISO 9141) or K-Line interfaces; Sub-D9 plug
Power supplytyp. 3.3 V DC, 500 mA / 5 V DC, 100 mA
Temperature range0 ºC ... +70 ºC
Certification CE, FCC
SizeApprox. 65 x 120 mm (available as standard and low-profile version)

• Active PCI board with 32 bit microcontroller
• Easy expandable via field bus expansion and expansion board
• Up to four CAN channels (High-/Low-Speed optional switchable)
• LIN optional
• Galvanic isolation of the CAN interface
• Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
• Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks

CAN
ports
Galv.
iso.
Order numbersOptional expansionsAdditional information
1X1.01.0293.120011 x Fieldbus Expansion
For variants and order numbers see table below
2X1.01.0293.220011-2 x Fieldbus Expansion
For variants and order numbers see table below
4X1.01.0293.22001
+ 1.01.0242.22000
Multi CAN Expansion
Two CAN ports on each SUB-D9 plug
4X1.01.0293.22001
+ 1.01.0240.22103
CAN Expansion Board
1-4 x Fieldbus Expansion
For variants and order numbers see table below
Two slot bracket ports required

Fieldbus Expansions

TypeGalv. iso.Order numbers
CAN Low-Speed (ISO 11898-3) X1.01.0241.20001
LIN (ISO 9141)X1.01.0241.20002
LIN (ISO 9141), V Bat externX1.01.0241.20012
CAN Low-Speed (ISO 11898-3) + LIN (ISO 9141)X1.01.0241.20100
CAN Low-Speed (ISO 11898-3) + LIN (ISO 9141), V Bat externX1.01.0241.20110
