CSS Electronics - CL2000: CAN Bus Logger (+RTC)

The plug & play CL2000 CAN logger records CAN bus data to an 8 GB SD card and timestamps it with a real-time clock.

Further, the CL2000 can operate as a CAN bus interface for real-time USB streaming.

The CAN logger is ideal for vehicle fleet management (trucks, buses, harvesters, cars, ...), prototype field testing, diagnostics or reverse engineering.



CAN Bus Interface SavvyCAN Free Software



Outline

PLUG & PLAY

Configure in 2 min. Power via CAN connector. Auto-detect bit-rate

STANDALONE

Log CAN data to 8-32GB SD card for months - no pc needed

RTC TIMESTAMP

Date & timestamp your data - vital for post analysis (incl. battery backup)

LIVE STREAM

Easily stream raw & DBC decoded CAN data in SavvyCAN

COMPACT

Fits the palm of your hand (6.6 x 4.3 x 2.4 CM) & weighs <50g

LOW COST

The value/cost of the CL2000 is unbeatable

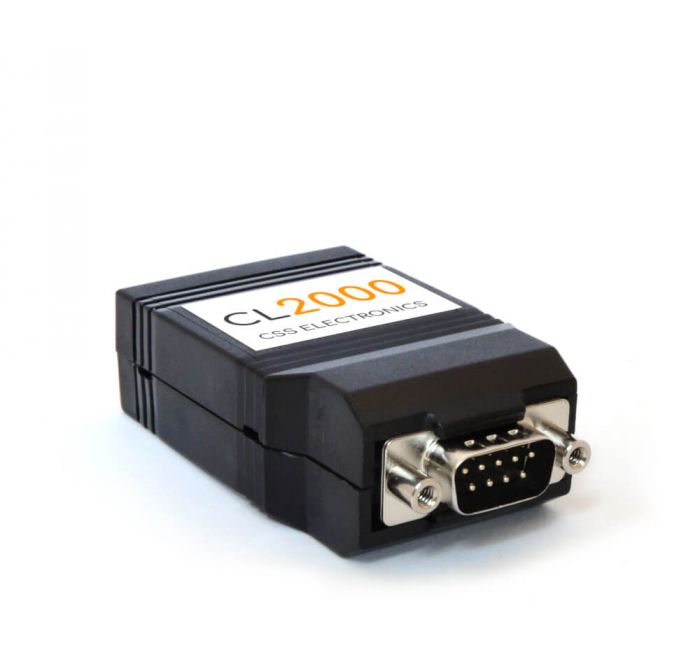

Compact CAN logger with SD

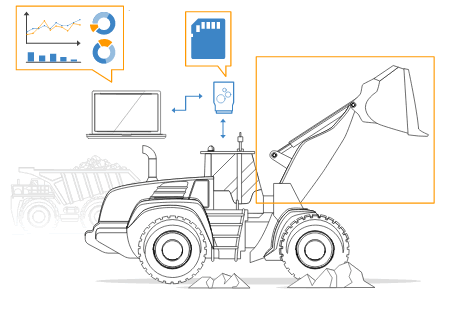

The CL2000 lets you log date & time stamped raw CAN data to an 8-32 GB SD card - 100% standalone with no PC required:

Compact CAN logger with SD

  • Power via CAN connector (<1W power consumption)
  • Auto-detect bit rate - no configuration required
  • Log raw CAN data in simple CSV style format
  • Easily extract data from the SD card via USB
  • Configure device via simple CONFIG.INI file
  • Silent mode, filters, transmit lists, cyclic logging
  • Timestamp data via real-time clock (battery backup)

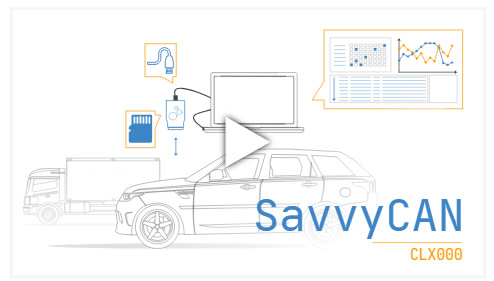

CAN streaming in SavvyCAN

The CL2000 can stream raw CAN data via USB to your PC for real-time analysis:

  • Stream raw CAN data in flexible views (filters, traces, ...)
  • Send CAN frames into your CAN bus with real-time control
  • Display human-readable form via DBC files (incl. J1939)
  • Create real-time plots of decoded signals like speed, RPM, ...
  • Highlight bit/byte changes per CAN ID via the 'sniffer view'
  • Quickly plot 'hypothesis signals' for reverse engineering
  • Load CLX000 log files for post processing analysis

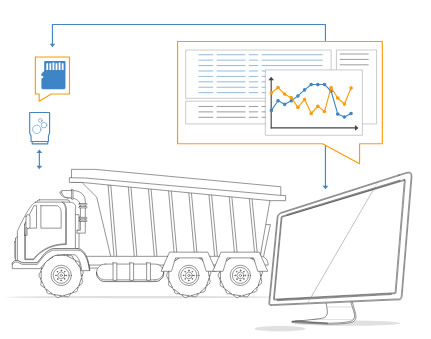

Convert & DBC decode log files

The CL2000 also comes with software tools for converting & decoding log files

Compact CAN logger with SD

  • Convert log files to Vector ASC or PEAK TRC
  • Decode log files with DBC support in SavvyCAN
  • Export output as CSV for e.g. Excel pivots





GENERAL
FunctionalityData logger and real-time CAN interface
LEDsLogger status via three externally visible LEDs
FirmwareSupports free firmware updates for adding features
SoftwareFree executables for conversion to ASC/TRC [Windows/Linux]
 Free open source SavvyCAN software for streaming/analyzing CAN data + DBC decoding [Windows/Linux]
 The .INI config / .TXT log files can also simply be opened in text editors or scripts [Windows/Linux]
SafetyCE, FCC, IC, RoHS certified



CAN BUS


StandardCompliant with physical layer standard ISO 11898-2
IdentifiersCompliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Bit RateBit rates up to 1 Mbps (manually configured or automatically detected)
Bit-rate auto-detectionYes
Protocol SupportProtocol independent (i.e. able to log CAN, J1939, CANopen, OBD2, ...)
FiltersAdvanced message filtering on four configurable channels
Silent ModeYes (does not affect CAN-bus transmission)
Fail-SafesThe device does not terminate the CAN-bus internally



DATA LOGGING


SD CardReplaceable 8 GB SD card (optional 32 GB)
Real-Time ClockYes (CAN messages are time-stamped with 1ms resolution)
Control SignalLogging state (enabled/disabled) can be changed run-time using a CAN-bus control message
Heartbeat SignalSupports heartbeat signal to periodically indicate logger status
Cyclic LoggingSupports cyclic logging mode (oldest log file is deleted when file system is full)
Down SamplingCAN ID specific message down-sampling to reduce frequency of logged messages
TransmitTransmit up to 20 customized CAN bus messages (e.g. for OBD2). Full real-time transmit control via USB
File SystemStandard FAT file system
Frames/SecondThe CL2000 can log/stream ~800-1000 frames/sec without loss. For higher busloads, see the CANedge



SUPPLY


Power via CAN connectorPower can be supplied from the DB9 CAN connector (log/stream) or via USB (data extraction)
Via CAN connector (DB9)Power supplied by the CAN bus (+7.0V to +32V DC)
ProtectionReverse voltage protection on CAN-bus supply
 Transient voltage pulse protection on CAN-bus supply
Power via USBPower supplied by USB (+5.0V DC) for data extraction/configuration
ConsumptionThe logger's power consumption is approximately 1 W



MECHANICAL


EnclosureRobust, small enclosure
Dimensions66.7 x 42.7 x 23.5 mm (L x W x H)
Weight45 grams
ConnectorStandard D-sub 9 (DB9) connector (OBD2, J1939, "generic" adaptor optional)
USBStandard mini USB (B) connector for extracting data & streaming (cable not included)
TemperatureOperating temperature: -20degC to +65degC
Real-Time ClockBuilt-in real-time-clock with calendar and battery backup
 Date and time information are added to log files
 Battery backup with more than two years of battery capacity
IP RatingIP Rating 40

Use Cases

The CL2000 is ideal for medium to long-term standalone data logging and ad hoc data streaming.

Below we outline some of the typical applications for the CL2000 - also, check our CASES section for real customer use cases.



Note: We recommend that you also check out the 2nd generation CANedge1 or CANedge2 with WiFi.





Vehicle development & field testing

Vehicle development & field testing

Need to develop, debug or optimize your vehicles?

The CL2000 provides OEM teams with an easy tool for collecting vehicle data. In particular, the CL2000 is useful for late-stage development. Here, the compact standalone functionality means that it can be added to large fleets of prototype vehicles for long-duration logging. After a few weeks or months, the data can be collected and analyzed for optimization and diagnosis.





Rare issue identification

Rare issue identification

Need to identify a an issue that only occurs e.g. every 3 months?

A non-standalone solution is simply not feasible. However, with the CL2000 you can log months of data from one or multiple vehicles or machines at low cost. With cyclical logging, the most recent data is prioritized if no space is left. Once the rare behavior is observed, you'll have all the data you need to troubleshoot it.





Compliance monitoring

Compliance monitoring

Need to record and register vehicle data for compliance?

In some scenarios, you'll need to collect compliance or insurance related data - e.g. emissions (e.g. NOx, CO, HC, PM, ...). You may need to legally log this data from your fleet - even if you do not intend to use it actively. In such a setup, the CL2000 is the optimal solution: With an 8-32 GB SD, cyclical logging and RTC you can log all the CAN, OBD2, FMS or J1939 data you need - and collect it on a case-by-case basis.





Reverse engineering proprietary data

Reverse engineering proprietary data

Want to reverse engineer proprietary data parameters?

If you're not the vehicle OEM, you may need to reverse engineer certain proprietary CAN data. Maybe you want to hack your car - or maybe you need to add custom functionality in a J1939 test setup. Through data logging, Wireshark streaming and analysis it is possible to identify what CAN IDs relate to what parameters - and how to offset/scale the data. Learn more in our CAN sniffer intro. You can stream data via SavvyCAN or Wireshark, both 100% free and open source.

DescriptionOrder numbers
CL2000:CAN Bus Logger (+RTC)D01CL2000
