TL-Xchange

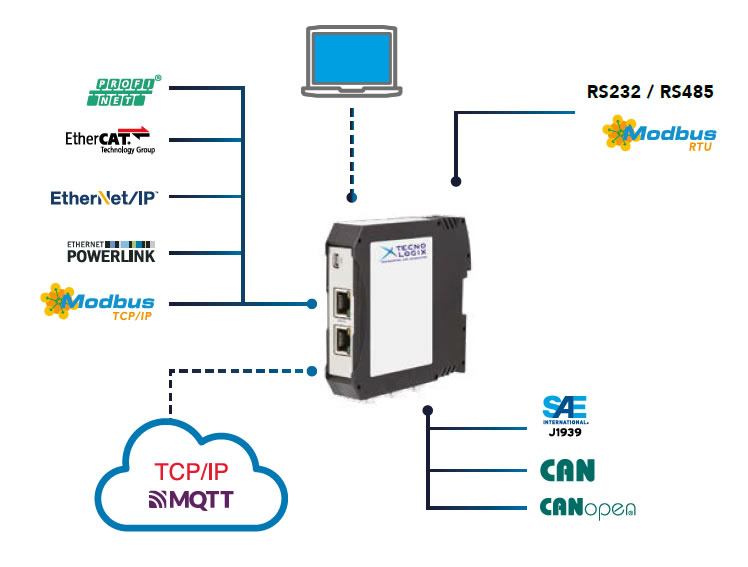

TL-Xchange is used for transfer and conversion of data between industrial automation networks of different types.

Download Flyer ➦

Gateways are a simple and cost-effective solution for any type of data conversion, being them used with fieldbus, Ethernet or Real-Time Ethernet systems.
Gateways allow the efficient integration of devices and plant components into existing structures and the interconnection of different systems and network components.
TL-Xchange offers an easy to use solution for every application, from simple devices for dedicated implementation to high-end devices for demanding and individual conversion tasks.
Our gateway is available with a wide choice of different protocols.

TL-Xchange includes a web setup tool for easy configuration via Ethernet.



PC interfaces

Ethernet Interface10/100 Mbit/s, twisted pair, RJ45 connector
CAN Channels2 x CAN – Screw connector
Max number of bus nodes120
CAN bitrates5 kbit/s to 1 Mbit/s
CAN bus termination resistorSelectable by jumper
Serial RS232/RS485 Channels2 x Serial – Screw Connector
Power Supply9V to 36V DC (24V @140 mA, 12V @ 250mA)
Temperature rangeIndustrial (-40C - +85C)
Calvanic isolation1kV
CertificationCE, FCC, UL
HousingPolyamide housing for DIN rail mounting

Available off-the-shelf protocols

  • PROFINET CC-B RT1
  • Ethernet/IP
  • EtherCAT
  • Ethernet Powerlink
  • CANopen Master/Slave
  • SAE J1939
  • Modbus/RTU Master/Slave
  • Modbus/TCP Master/Slave
  • OPC-UA
  • MQTT
  • New protocol available on request.
