SEGGER emModbus

Modbus Software

emModbus, SEGGER's implementation of the Modbus protocol, supports communication via UART (ASCII, RTU), Ethernet (Modbus/TCP and Modbus/UDP), and is capable to communicate with any Modbus compliant device.

  • Supports ASCII, RTU and Modbus/TCP (and UDP) protocol
  • Sample applications for all protocols included
  • Kernel abstraction layer: can be used with or without any RTOS
  • Modbus/TCP can be used with standard socket interface and any TCP/IP stack

Modbus is an open, mature, and straight forward communications protocol. It was originally published in 1979 by Modicon (Schneider Electric) and has since evolved into a standard communications protocol for industrial electronic devices.

Modbus was specifically designed to be used in supervisory control and data acquisition systems, connecting a supervisory computer with several remote terminal units (RTU). It therefore uses a master-slave-technique in which one device, the master, initiates transactions (called queries).

Other devices, slaves respond by performing the action requested in the query and/or by supplying the requested data to the master.

emModbus—Available Shipments

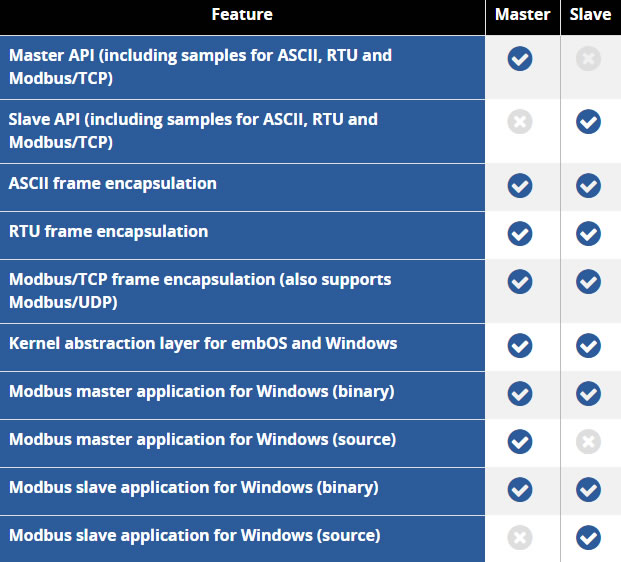

SEGGER offers emModbus in two distinct shipments, emModbus Master and emModbus Slave.

TCP/IP Stack

For usage of Modbus/TCP, emModbus requires a TCP/IP capable stack. emModbus can be used with any TCP/IP stack that supports BSD Standard Sockets.

Multi Tasking

Although emModbus can be used completely without a RTOS, it is recommended to use emModbus in a multi tasking system, at least when implementing a Modbus master.

• Easy to integrate
• Low memory footprint
• ANSI-C code is completely portable and runs on any target
• Follows the SEGGER coding standards: Efficient and compact, yet easy to read, understand, and debug
• Supports ASCII, RTU and Modbus/TCP (and UDP) protocol
• Sample applications for all protocols included
• Kernel abstraction layer: can be used with or without any RTOS
• Works out-of-the-box with embOS
• Modbus/TCP can be used with standard socket interface and any TCP/IP stack
• Works out-of-the-box with embOS/IP
• Project for executable on PC for Microsoft Visual Studio available
