PROFIBUS Master Simulator

The Master Simulator is an easy to use tool to test the PROFIBUS functionality of any fieldbus device. Two versions are available, one basic version for PROFIBUS-DP only, and a full version for both PROFIBUS-DP and DPV1.


The automatic Slave identification functionality permits communication to almost any PROFIBUS slave device even if the normally required GSD file is not available. So it is possible, to initialize a slave device step by step and finally read or write the I/O data.

The Master Simulator also permits the address assignment of the Profibus slaves via the bus and to display and analyse diagnostic messages of Profibus slaves on the screen

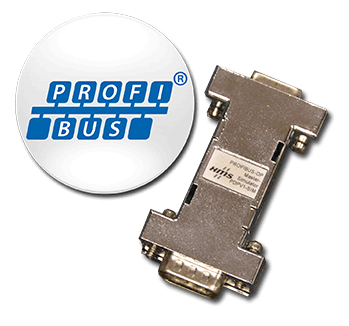

The connection to the Profibus interface of the slave device is made via an RS-232 to Profibus converter, which is built-in into a small D-SUB connector housing. This converter is connected to the PC´s COM-Port via a serial connection cable

Dimensions  (L•W•H)
62 x 34 x 15
Operating temperature-0 to +55 °C
Power supply5 Volt / 60 mA taken from the PROFIBUS interface of the device
Max cable length
2 meters
Baudrate19.2 kbit/s
PC connection viaCOM port (RS-232)
PC requirementsWin 9X/2K/ME/XP/7/10
CertificationsCE, RoHS
  • Easy to use test and diagnostic tool for PROFIBUS DP/DPV1 slaves
  • Read / Write of cyclic I/O data in various formats
  • The DPV1 version permits acyclic parameter read/write access
  • Automatic Profibus slave address search
  • Automatic detection of I/O data size
  • Display of standard Profibus diagnostic messages
  • Works also without GSD file
  • No programming required
  • No external power supply required
  • Ideal for mobile usage with laptops running Win98, 2000, ME, XP, Vista, 7, 8, 10
Order Code017504 (PROFIBUS-DP ONLY) - 017505 (PROFIBUS-DP/DPV1)
Included components

PROFIBUS Master Simulator software CD

Connection cable to connect the converter to a
PC COM-Port and an RS-232/ PROFIBUS converter

Optional accessories

019570:USB-RS-232 configuration adapter
