Port EtherCAT Protocol Stack

The EtherCAT Protocol Stack provides all required services for a compliant communication according to the EtherCAT Standard IEC61158. . It facilitates easy and fast development of EtherCAT Slave devices. The functional range can be extended by additional modules. Access to the hardware is carried out via a hardware abstraction layer. These drivers are available for selected hardware.

The EtherCAT Protocol Stack provides all required services for a compliant communication according to the EtherCAT Standard IEC61158. . It facilitates easy and fast development of EtherCAT Slave devices. The functional range can be extended by additional modules. Access to the hardware is carried out via a hardware abstraction layer. These drivers are available for selected hardware.

The EtherCAT Library provides all required services for a compliant communication according to the EtherCAT Standard IEC61158  . It facilitates easy and fast development of EtherCAT Slave devices. The functional range can be extended by additional modules. Access to the hardware is carried out via a hardware abstraction layer. These drivers are available for selected hardware, including port’s FPGA solution, which is available for Altera Nios ® II and Xilinx MicroBlaze™. The FPGA solution can also be used for other Industrial Ethernet Protocols, e.g. Ethernet POWERLINK, EtherNet/IP and PROFINET. An uniform user interface makes it easy to implement different protocols.

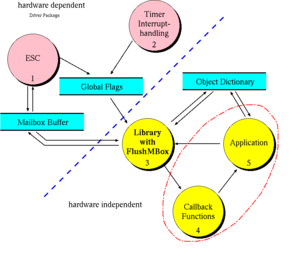

The EtherCAT Library consists of a hardware independent and a hardware dependent part that communicate with message queues. The hardware dependent part consists of controlling software for the EtherCAT driver and timer functions.




The application communicates only with the hardware independent part of the EtherCAT Library. That way it is possible to exchange drivers without any influence on the functionality of the application. The initialization of EtherCAT services is done with function calls within the application. During the execution of the application the EtherCAT Library executes all necessary communication tasks autonomously and informs the application about successful received EtherCAT messages with the help of callback functions.
Communication requests from other devices as well as necessary periodical tasks and time out monitoring is handled within the EtherCAT Library. All requests are proved for correctness (access rights, data types etc.). The application is notified after completion of the communication and occurrence of failures, respectively, through service oriented callback functions. In these callback functions appropriate actions can be carried out from the application.

The object directory is designed to contain references to the variables in the user application. Consequently it is possible to take over variables from an existing software without any changes in the object dictionary.
The high degree of scalability of the EtherCAT Library is of particular importance for devices with limited resources. On one hand, this is achieved by the modularity in individual service groups, and on the other hand, through the use of compiler directives in the respective modules. Thus, the code size is proportional to the utilized EtherCAT services.

Delivery of the EtherCAT Library comprises different example programs that describe the usage of the various EtherCAT Library services. All examples contain a complete implementation of a EtherCAT Library device including the object directory as well as application code. These are ready to be compiled and run.

Among the detailed documented source code there is the reference manual and a printed user manual as documentation available.

The EtherCAT Library is constantly improved and adopted to customer requirements. In order to keep up with the latest version of the EtherCAT Library port provides its customers an update service.

For development, test and initial operation of EtherCAT devices port provides a comprehensive tool chain. The creation of the object directory is simplified with the EtherCAT Design Tool (EtherCAT Design Tool light version belongs to the scope of delivery).

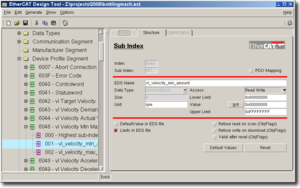

The graphical EtherCAT Design Tool is available for the creation of the object directory, the electronic data sheet (EDS file in XML format) and for the documentation of the device in HTML or text format.

Besides the communication objects several application objects in different device profiles are also specified in EtherCAT. These definitions guarantee a defined behavior of the corresponding device class and enable the interchangeability of EtherCAT devices. Device profiles can be easily created by use of the EtherCAT Design Tool.
