Real time communication module

The NXP LPCXpresso55S69 Board and PORT´s ARDUINO EVAL platform provide development engineers with a comprehensive platform for testing IoT applications and integrating real-time communications such as PROFINET, EtherNetIP and EtherCAT.. The device is based on the Arm® Cortex®-M33 architecture with 320kB of RAM and 640kB of ROM. It is capable as an application controller for the iRJ45/SoM module.

All 3 communication technologies like PROFINET (CCB-RT1), EtherNetIP and EtherCAT protocols are available on the ARDUINO board.

All 3 communication technologies like PROFINET (CCB-RT1), EtherNetIP and EtherCAT protocols are available on the ARDUINO board.

The Core to Core (c2c) communication is connected to the Host CPU (LPC5500 Series) via the SPI. Corresponding examples are available.

At the heart of the ARDUINO board is the SoM IoT module from PORT.

About NXP LPCXpresso55S69 Board

In addition to the multi-protocol solution, extensive management tools are also supplied. The combination of a NXP LPC5500 Series with the SoM IoT module is a very cost-effective variant of applications for PROFINET, EtherNetIP and EtherCAT to set.

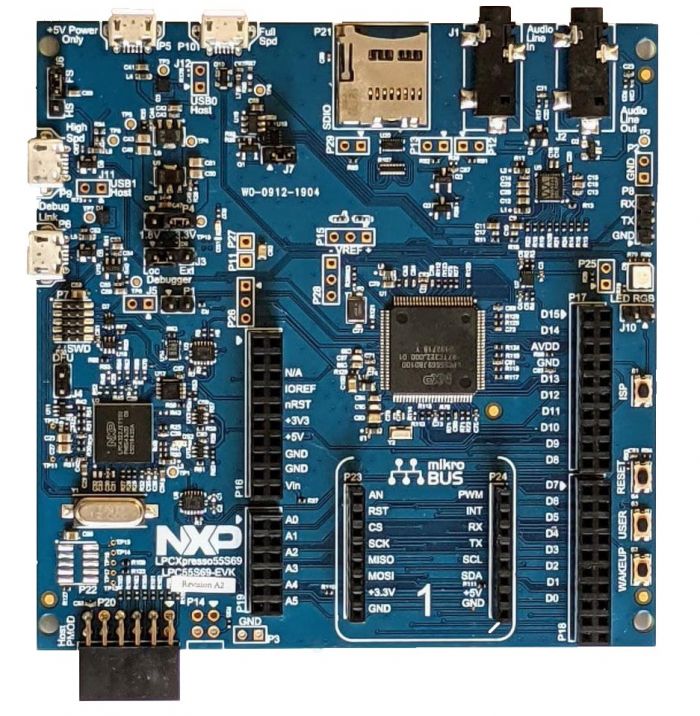

The LPCXpresso55S69 development board provides the ideal platform for evaluation of and development with the LPC55S6x MCU based on the Arm® Cortex®-M33 architecture. The board includes a high performance onboard debug probe, audio subsystem and accelerometer, with several options for adding off-the-shelf add-on boards for networking, sensors, displays, and other interfaces.

The LPCXpresso55S69 is fully supported by the MCUXpresso suite of tools, which provides device drivers, middleware and examples to allow rapid development, plus configuration tools and an optional free IDE. MCUXpresso software is compatible with the open source MCU operating system FreeRTOS, tools from popular tool vendors such as Arm and IAR, and the LPCXpresso55S69 may also be used with the popular debug probes available from SEGGER and P&E Micro.

About NXP LPC5500 Series MCU

The LPC5500 MCU series leverages Arm's most recent Cortex-M33 technology, combining significant product architecture enhancements and greater integration over previous generations; with dramatic power consumption improvements and advanced security feature including SRAM PUF-based root of trust and provisioning, real-time execution from encrypted images (internal flash), and asset protection with Arm® TrustZone®-M. In addition, the LPC5500 MCU series features seven scalable families, with a broad package and memory options, as well as a comprehensive MCUXpresso Software and Tools ecosystem and low-cost development boards. The LPC5500 series of MCUs is part of NXP's EdgeVerse™ edge computing platform.


  • Test your SoM at low costs
  • PROFINET CCB RT1 on board
  • EtherNetIP on board
  • EtherCAT on board
  • SPI driver available
  • extensive tool chain available
  • Design Tool for PROFINET / EtherNetIP available (optional)
  • no license costs
  • updates and upgrades for free
  • cost-effective solution for small and medium quantities
  • simple design in
  • low investment

Art.No: 2070/93

MQQ: 1 pcs
