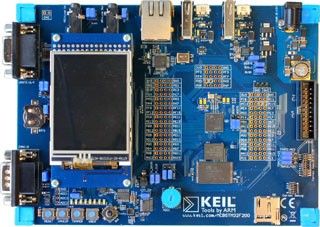

Keil MCBSTM32F200

STM32F207IG, 1 x 2 MByte SRAM, 1 x 8 MByte NOR Flash
Processore STM32F207IG — Architettura Cortex-M3.

La scheda di valutazione Keil MCBSTM32F200 permette di creare e testare programmi basati sulla serie STMicroelectronics STM32 F2xx di dispositivi basati su processori ARM Cortex™-M3.

MCBSTM32F200 è è disponibile come singola scheda di valutazione o come uno starter kit con l'adattatore ULINK-ME ULINK2.



La scheda di valutazione Keil MCBSTM32F200 permette di creare e testare programmi basati sulla serie STMicroelectronics STM32 F2xx di dispositivi basati su processori ARM Cortex™-M3.

MCBSTM32F200 è è disponibile come singola scheda di valutazione o come uno starter kit con l'adattatore ULINK-ME o ULINK2.



Board
MCUSTM32F207IG
XTAL25 MHz
ARM ProcessorCortex-M3
MCU Clock120 MHz
Prototyping Area
Dimensions (Inches)4.875 x 6.69
Dimensions (cm)124 x 170
Memory
On-Chip RAM128K
On-Chip FLASH1M
External RAM2M
External Flash8M / 512M
I/O
Push Buttons4
I/O Port LEDs8
Analog Input (Potentiometer)
Analog Output (Speaker)
Serial Ports3
CAN Ports2
USB Device Interface
USB Host/OTG
Ethernet Interface10/100
SD Card Interface
LCDQVGA
Debug Interface
JTAG Interface
SWD Interface
ETM Interface
10-pin Cortex Connector
20-pin Cortex Connector
20-pin JTAG Connector
Power
ConnectorUSB
Supply Requirements5 VDC
Current (Typical)320 mA
Current (Maximum)375 mA
Mounted Device
• STM32F207IG

Compatible Devices:
• STM32F207
• STM32F217
• STM32F205
• STM32F215

Debug Interface:
• JTAG/SW
• JTAG/SW
• JTAG/SW

Keil MCBSTM32F200 Development Board

Connectors USB, CAN, RS232, Ethernet, LineIn, LineOut
• USB:1 x USB 2.0 Full Speed, Host/Device, OTG
• USB:1 x USB 2.0 High Speed, Host/Device, OTG
• CAN:1 x CAN
• RS232:1 x RS232
• Ethernet:1 x 10/100 Ethernet Port
• Line In:2 x Audio CODEC with Line-In/Out and Speaker/Microphone
• Line Out:2 x Audio CODEC with Line-In/Out and Speaker/Microphone

Controls Push-buttons, Potentiometer, Joystick
• Push-buttons:4 x Push-Buttons for Reset, Wakeup, Tamper and User
• Potentiometer:1 x Analog Voltage Control for ADC Input (potentiometer)
• Joystick:1 x 5-position Joystick

Sensors Gyroscope, Accelerometer
• Gyroscope:1 x 3-axis digital output gyroscope
• Accelerometer:1 x 3-axis digital Accelerometer

Other LED, GLCD, Camera, Other
• LEDs:8 x LEDs directly connected to port pins
• GLCD:1 x 240.320 2.4 inch Color QVGA TFT LCD with resistive touchscreen
• Camera:1 x Digital VGA Camera
• Other:1 x Digital Microphone

Core Components STM32F207IG, 5 V Power, 8 V - 12 V Power
• Oscillator:8 MHzCrystal Oscillator
• Power Supply:5 V USB Powered
• Power Supply:8 V - 12 V External Supply
• Device:STM32F207IG
• Compatible Devices:STM32F207,
• Compatible Devices:STM32F217,
• Compatible Devices:STM32F205,
• Compatible Devices:STM32F215,

On-Board Memory 2 MByte SRAM, 8 MByte NOR Flash, 512 MByte NAND Flash, 8 kByte I2C EEPROM
• RAM:1 x 2 MByte SRAM
• Flash:1 x 8 MByte NOR Flash
• Flash:1 x 512 MByte NAND Flash
• Flash:1 x 8 kByte I2C EEPROM

Development Tools
• MDK Version 5 (Microcontroller Development Kit)

Drivers
• CAN Driver for STM32F2 Series
• SPI Driver for STM32F2 Series
• USART Driver for STM32F2 Series
• I2C Driver for STM32F2 Series
• MCI Driver for STM32F2 Series
• Ethernet MAC Driver for STM32F2 Series
• USB Device Full-Speed Driver for STM32F2 Series
• USB Device High-Speed Driver for STM32F2 Series
• USB Host Full-Speed Driver for STM32F2 Series
• USB Host High-Speed Driver for STM32F2 Series

Examples
• CMSIS-RTOS Blinky
• CMSIS-RTOS Blinky with STM32CubeMX
• Demo
• emWin Example
• emWin GUI Demo
• emWin VNC Server with STM32CubeMX
• CAN
• CAN RTR
• USB Device HID
• USB Device Mass Storage
• USB Device Virtual COM
• USB Device WinUSB Echo
• USB Host Mass Storage
• USB Host Keyboard
• File System Demo
• BSD Client IPv4/IPv6
• BSD Server IPv4/IPv6
• FTP Server IPv4/IPv6
• HTTP Server IPv4/IPv6
• SNMP Agent IPv4/IPv6
• HTTP Upload IPv4/IPv6
• SMTP Client IPv4/IPv6
• Telnet Server IPv4/IPv6

Documents (downloads)
• MCBSTM32F200 Evaluation Board Web Page
• Schematics V1.1
• Schematics V1.2
• User Manual
