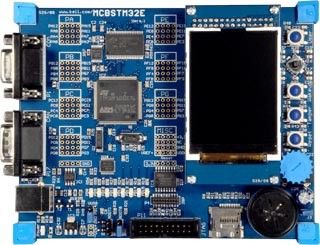

Keil MCBSTM32E Development Board

Keil MCBSTM32E Development Board

I/Os 42 GPIOs (maximum)
• Prototyping Area:6 Prototyping areas connected to I/Os
• Digital I/Os:42 x GPIOs (maximum)

Connectors USB, CAN, RS232, LineIn, LineOut
• USB:1 x USB 2.0 Full Speed Device
• CAN:1 x CAN
• RS232:1 x RS232
• Line In:2 x Audio CODEC with Line-In/Out and Speaker/Microphone
• Line Out:2 x Audio CODEC with Line-In/Out and Speaker/Microphone

Controls Push-buttons, Potentiometer, Joystick
• Push-buttons:4 x Push-Buttons for Reset, Wakeup, Tamper and User
• Potentiometer:1 x Analog Voltage Control for ADC Input (potentiometer)
• Joystick:1 x 5-position Joystick

• LEDs:8 x LEDs directly connected to port pins
• GLCD:1 x 240.320 2.4 inch Color QVGA TFT LCD with resistive touchscreen

Core Components STM32F103ZG, 5 V Power
• Oscillator:8 MHzCrystal Oscillator
• Power Supply:5 V USB Powered
• Device:STM32F103ZG
• Compatible Devices:STM32F103,

On-Board Memory 1 MByte SRAM, 8 MByte SPI Flash
• RAM:1 x 1 MByte SRAM
• Flash:1 x 8 MByte SPI Flash

Form Factor 110 mm x 140 mm
• Custom:110 mm x 140 mm
