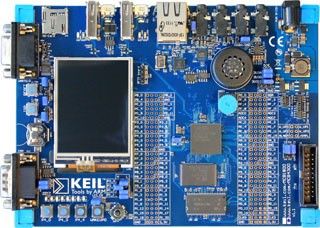

Keil MCB1800

Evaluation Board and Starter Kit

The Keil MCB1800 Evaluation Boards enable you to create and test working programs based on the NXP LPC1850 family of ARM Cortex™-M3 processor-based devices.
The MCB1800 Evaluation Board is available in two different configurations:

• The MCB1850 Evaluation Board is populated with an NXP LPC1850 device
• The MCB1857 Evaluation Board is populated with a NXP LPC1857 device

Development Software

The MCB1800 Evaluation Board and Starter Kit includes the MDK-ARM Lite Edition Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCB1800 evaluation board, and a Quickstart guide are included.

 Connectors USB, CAN, RS232, Ethernet, LineIn, LineOut
  • USB:1 x USB 2.0 High-speed Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
  • USB:1 x USB 2.0 Full-speed Host/Device interface (USB host + micro USB Device connectors)
  • CAN:1 x CAN
  • RS232:1 x RS232
  • Ethernet:1 x 10/100 Ethernet Port
  • Line In:2 x Audio CODEC with Line-In/Out and Speaker/Microphone
  • Line Out:2 x Audio CODEC with Line-In/Out and Speaker/Microphone

  Controls Push-buttons, Potentiometer

  • Push-buttons:6 x Push-Buttons: 3 x GPIO, Reset, ISP, WAKEUP
  • Potentiometer:1 x Potentiometer for ADC Input

  Other LED, GLCD

  • LEDs:8 x I/O Port LEDs
  • GLCD:1 x 240.320 2.4 inch Color QVGA TFT LCD with resistive touchscreen

  Core Components LPC1857, 5 V Power, 8 V - 12 V Power

  • Oscillator:12 MHzCrystal Oscillator
  • Power Supply:5 V USB Powered
  • Power Supply:8 V - 12 V External Power Supply
  • Device:LPC1850
  • Device:LPC1857
  • Compatible Devices:LPC185x,

  On-Board Memory 16 MB SDRAM, 16 MB NOR Flash, 4 MB Quad-SPI Flash

  • RAM:1 x 16 MB SDRAM
  • Flash:1 x 16 MB NOR Flash
  • Flash:1 x 4 MB Quad-SPI Flash
  • SD/microSD/MMC Card Holder:1 x microSD Card Holder

  Form Factor 124 mm x 170 mm

  • Custom:124 mm x 170 mm

Features

  • 180MHz ARM Cortex-M3 processor-based MCU in LBGA256
  • On-Chip SRAM: 136KB (LPC1857), 200KB (LPC1850)
  • On-Chip Flash: 1MB dual bank (LPC1857), no on-chip Flash (LPC1850)
  • On-Board Memory: 16MB NOR Flash, 4MB Quad-SPI Flash, 16 MB SDRAM, & 16KB EEPROM (I2C)
  • Color QVGA TFT LCD with touchscreen
  • 10/100 Ethernet Port
  • High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
  • Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
  • CAN interfaces
  • Serial/UART Port
  • MicroSD Card Interface
  • 4 user push-buttons + reset
  • Digital Temperature Sensor (I2C)
  • Analog Voltage Control for ACD Input
  • Audio CODEC with Line-In/Out and Microphone/headphone connector + Speaker
  • Debug Interface Connectors
    • 20-pin JTAG (0.1 inch)
    • 10-pin Cortex debug (0.05 inch)
    • 20-pin Cortex debug + ETM Trace (0.05 inch)

Ordering Information

The MCB1800 is available as a stand alone evaluation board or as a starter kit which includes the
ULINK-ME / ULINK2 debug adapter.

  • MCB1850: MCB1850 evaluation board
  • MCB1850UME: MCB1850 starter kit (includes ULINK-ME)
  • MCB1857: MCB1857 evaluation board - available Q3,12
  • MCB1857UME: MCB1857 starter kit (includes ULINK-ME) - available Q3,12
