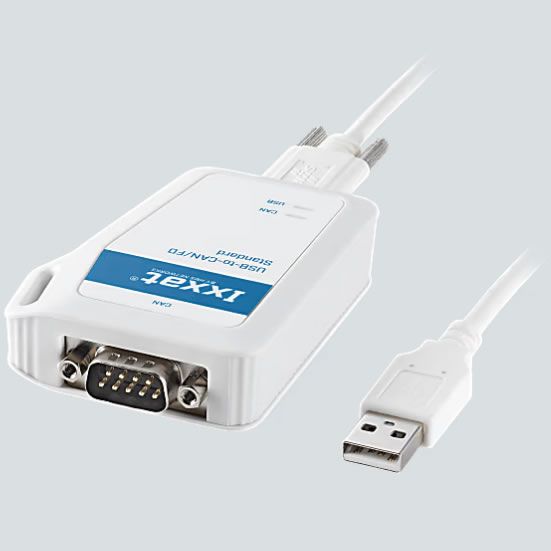

The Ixxat USB-to-CAN/FD Standard with galvanic isolation offers a straightforward and economical solution for connecting a computer to a CAN/CAN FD bus network. It is a very reliable tool for CAN FD applications e.g. in the field of test, development, maintenance or control applications.
Case Studies
CAN diagnostic for repair shops
The USB-to-CAN V2 adapters facilitate seamless CAN diagnostic and maintenance for jet skis, snowmobiles, and quads, offering a reliable, all-in-one solution for professional repair shops globally.
CAN data analysis and collection accelerates electric vehicle development
With interest in the development of electric vehicles at an all-time high, one company has identified the Ixxat USB-to-CAN V2 interface as perhaps the best way to download operational data for further CAN data analysis.Automotive testing: EtherCAT to CAN FD gateway communication
Reinova S.p.a, especially its Reitech subdivision, is a leading automotive testing house in Italy’s “Motor Valley,” focusing on electric mobility and batteries. They use the CANnector platform from Ixxat to ensure reliable and flexible test lab communication between test bench automation and in-vehicle networks (IVNs).USB CAN interface helps the Forze racing team to "Pole Position"
Ixxat CAN communications hardware and software provided the Forze team with communications between the race car’s systems and the teams engineers, as well as analysis tools for understanding the cars performance data.Features and benefits
Versatile connectivity for CAN/CAN FD-based networks
Simplifies the connection of computers to CAN/CAN FD-based networks by providing versatile integration options for industrial and automotive applications.
Cost-effective connectivity
Offers a cost-effective solution, delivering high performance at an economical price. Ideal choice for demanding applications, without having to compromise on quality.
Powerful CAN FD connection
Equipped with a CAN FD channel (up to 8 Mbits) via a D-Sub 9 connector for rapid and reliable data communication in CAN/CAN FD networks.
High-speed USB connectivity
USB 2.0 hi-speed (480 MBit/s) ensures fast data transfer and compatibility with USB 3.x.
High-precision timestamps
High-precision on-board time-Stamping allows for precise data tracking and monitoring.
Efficient data handling
Offers high data throughput combined with minimal latency, ensuring prompt and efficient data processing for demanding needs.
Overvoltage protection
Galvanic isolation safeguards against overvoltage and protects from potential electrical damage.
Comprehensive driver compatibility
Ixxat VCI driver packages support multiple fieldbuses and allow easy switching between different PC interface types. Available as free download.
Powerful programming interface
Ixxat offers versatile programming interfaces for Windows (VCI), Linux (ECI) and real-time OS (on request), enabling flexible development across multiple operating systems.
Analysis software included
Ixxat canAnalyser3 Mini is included in the VCI V4 download package and enables first steps in analyzing and monitoring CAN networks.
General
Content of Delivery
USB-to-CAN/FD interface, cable with Type-C and Type A with locking screws, Safety and Compliance Information Leaflet; Available as free download: VCI, ECI and SocketCAN driver
Not Included (in delivery)
Comprehensive and powerful driver and software packages are available as free download
Current Consumption Type Value at Vcc Nom (mA)
106 mA
Current Consumption Max value at Vcc nom (mA)
+5 V DC/300 mA (via USB port)
Input Voltage (V)
+5 V DC (via USB port)
Power Connector
USB
Isolation Voltage (kV)
1 kV DC for 1 minute kV
Operating Temperature °C Min
-40 °C
Operating Temperature °C Max
+ 70 °C
Storage Temperature °C Min
-40 °C
Storage Temperature °C Max
+ 85 °C
Housing Materials
psabs
Packaging Material
Cardboard
Warranty (years)
1
CAN Features
CAN Mode
CAN high-speed (ISO 11898-2: 2016)
CAN Controller
CAN 2.0 A/B
CAN Baud Rate
10 kbit/s to 1000 kbit/s, user defined baud rates.
CAN Transceiver
TCAN1044
CAN FD Features
CAN FD Mode
ISO CAN FD (ISO 11898-1: 2015), nonISO CAN FD
CAN FD Baud Rate
Arbitration rate up to 1000 kBit/s, data rate up to 8000 kBit/s, user defined baud rates
CAN FD Transceiver
TCAN1044
Certifications & Standards
CE
Yes
FCC
Yes
Protection Class IP
IP40
Physical Features
Connectors / Input / Output
1 x D-Sub 9 connector, CiA standard pinning according to CiA 303-1, 1 x Type-C device connector, cable with Type-C to Type-A included
Contains Battery
No
Identification & Status
Item Number
1.01.0381.12001
Export Control Classification Number (ECCN) (Applies only to the U.S)
EAR99
Dual Usage
NO
Country of Origin
Sweden
Brand
Ixxat
Predecessor
1.01.0281.12001,1.01.0281.11001
HS Code
8517620000
