Ixxat Safe T100/PS

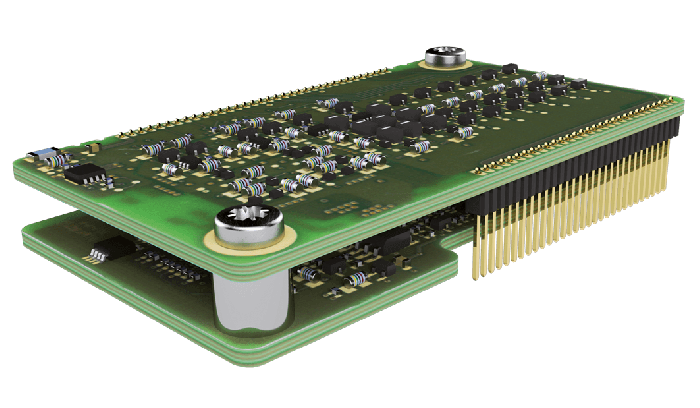

The Ixxat Safe T100/PS offers device manufacturers an easy way to control safe I/O signals using a safe fieldbus protocol. The module meets the SIL3 safety requirement level as defined by IEC 61508 and Performance Level PLe / Category 4 in ISO 13849-1.
Safe T100/PS is primarily designed to be used together with Anybus CompactCom, where the safety communication uses the black channel principle through Anybus CompactCom. For PROFIsafe, CompactCom performs the tasks of a PROFINET IO device, while Safe T100 includes the PROFIsafe layer and safe control of three dual-channel inputs as well as one dual-channel output.

The module's very compact size and flexible safety I/O routing make it perfect for integration into customer specific device solutions.

HOW IT WORKS

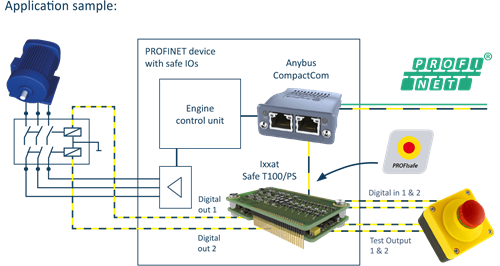

BLACK CHANNEL PRINCIPLE

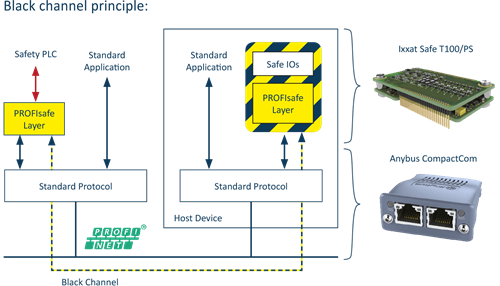

The Ixxat Safe T100/PS is used in customer devices together with a communication module of the Anybus CompactCom series, which is used to implement the unsafe bus connection. Safety communications use the black channel principle through the Anybus CompactCom communication module. For PROFIsafe, the communication module carries out the tasks of a PROFINET I/O device.





EASY CERTIFICATION

A comprehensive safety manual is provided for device certification. This describes all the needed integration and verification steps to achieve the TÜV certification which greatly reduces the time-to-market. Especially the clear separation of safety-relevant functions from the unsafe functions of the end device by the precertified Ixxat Safe T100 plug board is a great help in this situation.



DEVELOPMENT KIT

The Safe T100 comes with development kits for evaluation purposes. These consist of a base board with a PROFINET Anybus CompactCom module and a host CPU, along with the suitable safety module with easy to access safety I/O signals.
The configuration of the Safety I/Os is done via the fieldbus connection. For PROFIsafe a configuration tool is available which can be integrated seamlessly into the Siemens Step7 or TIA Portal tool chain.

Supported standards PROFIsafe (Standard V2.4 and 2.6.1)
Digital inputs 3 x dual channel, configurable with filter and monitor functions
Digital outputs 1 x dual channel, configurable
Safety Conformance Level max. SIL 3, Performance Level e (PLe) category 4
Power supply 24 V DC (SELV/PELV), 3.3 V DC
Operating temperature -30 °C to +68 °C
Dimensions 70 x 40 x 15 mm

FEATURES AND BENEFITS

  • All necessary functions and methods to achieve SIL-3/Performance Level e (PLe) on one board — simplifies customer board design
  • IOs configurable for single and dual channel use
  • Pre-certified concept and hardware for easy re-certification of the final device
  • Provision of full documentation set including TÜV type approval
  • Direct connectivity to Anybus CompactCom module for non-safe fieldbus communication - safe and non-safe communication on the same wire
Order code Description
1.01.0300.00002 Ixxat Safe T100/PS
022830-B T100 Development Kit for Ixxat Safe T100/PS
