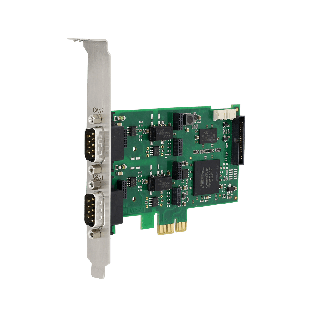

IXXAT CAN-IB600/PCIe

Active CAN FD Interface for PCI Express
1-2 x CAN FD, CAN (High-Speed), CAN (Low-Speed)

With the CAN-IB600/PCIe HMS offers a CAN FD interface based on a modern and highly modular architecture concept. The interface is available with up to two CAN channels. Each CAN channel can send and receive either CAN FD or CAN 2.0A/B messages. Using the optional expansion modules, the entire range of fieldbuses can be covered with one card – from CAN-FD (ISO as well as non-ISO format), CAN (ISO 11898-2), fault tolerant CAN (ISO 11898-3) to LIN.

The CAN-IB600/PCIe is an active interface which fulfills even high reqirements in data pre-processing, like intelligent data handling and active filtering of the received and transmitted messages.

If required, the number of CAN channels can be increased by using multiple CAN interfaces in one PC.

The board is supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite.

PC bus interfacePCI express (V1.1)
PC address rangePlug & Play
InterruptsPlug & Play
Microcontroller32 bit microcontroller
CAN interface1 or 2 CAN channels; CAN FD or CAN 2.0 A/B; Sub-D9 plugs according to CiA 303-1, galvanic isolation (1 kV, 1 sec.)
Power supply3.3 V DC, 400 mA typ.
Temperature range0 ºC ... +70 ºC
Certification CE, FCC
SizeApprox. 65 x 105 mm, available as standard version (low-profile version on request)
  • Active board with 32 bit microcontroller
  • Up to two CAN channels (High-Speed CAN or CAN FD)
  • Galvanic isolation of the CAN interface
  • Common driver interface support all IXXAT CAN and CAN FD interfaces and allow easy change of the PC interface type
  • Powerful programming interface for Windows "VCI" and "ECI" for Linux, QNX, RTX, INtime and VxWorks
CAN FD
ports
Galv.
iso.
Order numbersOptional expansions
1X1.01.0233.120101 x Fieldbus Expansion
For variants and order numbers see table below
2X1.01.0233.22010
1-2 x Fieldbus Expansion
For variants and order numbers see table below



Fieldbus Expansions

TypeGalv. iso.Order numbers
CAN Low-Speed (ISO 11898-3) X1.01.0241.20001
LIN (ISO 9141), V Bat 42 V externX1.01.0241.20014
CAN Low-Speed (ISO 11898-3) + LIN (ISO 9141)X1.01.0241.20100
