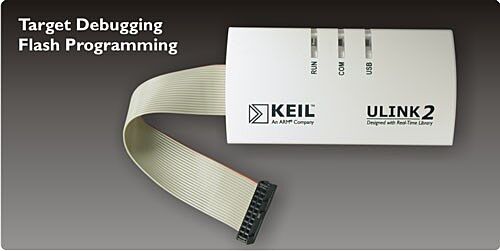

The Keil ULINK2 Debug Adapter connects your PC's USB port to your target system (via JTAG, SWD, or OCDS) and allows you to program and debug embedded programs on target hardware.
Features
- Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
- JTAG speed up to 10MHz
- Serial Wire Debug (SWD) support for ARM Cortex-M based devices
- Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
- NXP 2-wire debug interface (P89LPC952 and P89LPC954) support
- Real-Time Agent with memory R/W during execution, terminal emulation, and serial debug output
- Seamless integration with the Keil µVision IDE & Debugger
- Wide target voltage range: 2.7V - 5.5V
- USB powered (no power supply required)
- Plug-and-Play installation using standard Windows USB drivers
- Target Connectors:
- 10-pin (0.05"): Cortex Debug Connector
- 20-pin (0.10") - ARM Standard JTAG Connector
ULINK2 may be used for:
- On-chip Debugging (using on-chip JTAG, SWD, or SWV),
- Flash Memory Programming (using user-configurable Flash programming algorithms).
Using the ULINK2 adapter together with the Keil µVision IDE/Debugger, you can easily create, download, and test embedded applications on target hardware.ULINK2 support is available in:- MDK 3.04 or higher,
- C51 8.15 or higher,
- C166 6.06 or higher.
- Supporta diversi dispositivi ARM7, ARM9, Cortex-M, 8051 e C166
- Velocità JTAG fino a 10MHz
- Supporto Serial Wire Debug (SWD) per dispositivi basati su ARM Cortex-M
- Serial Wire Viewer (SWV) Data Trace per Cortex-M fino a 1Mbit/s (modalità UART)
- Supporto per l'interfaccia di debug NXP 2-wire (P89LPC952 e P89LPC954)
- Real-Time Agent con memoria R/W durante l'esecuzione, emulazione terminale e uscita seriale di debug
- Integrazione con Keil µVision IDE & Debugger
- Ampio range di tensione: 2.7V - 5.5V
- Alimentato via USB (non è richiesto nessun alimentatore)
- L'installazione Plug-and-Play usa i driver USB standard di Windows
Connettori:
- 10-pin (0.05"): Cortex Debug Connector
- 20-pin (0.10") ARM Standard JTAG Connector
ULINK2 può essere usato per:
- On-chip Debugging (usando on-chip JTAG, SWD, or SWV)
- Programmazione della flash (usando gli algoritmi di programmazione Flash configurabili dall'utente)
- Usando l'adattatore ULINK2 insieme all'IDE/Debugger Keil µVision, potete facilmente creare, scaricare e testare le applicazioni embedded sull'hardware di destinazione.
Il supporto per l'ULINK2 è disponibile in:
- MDK 3.04 o superioriC51 8.15 o superiori
- C166 6.06 o superiori
