IXXAT USB-to-CAN V2

VERSATILE CAN ADAPTER FOR USB
EASILY MONITOR, ANALYZE OR MAINTAIN YOUR CAN BASED DEVICES AND SYSTEMS!



• Supports CAN (High/Low Speed), CANopen, SAE J1939 and LIN
• Including Windows and Linux programming interface
• Supported by the IXXAT Tool-Suite
• Also available for the new CAN FD technology (USB-to-CAN FD)



VARIANTS



ACTIVE USB INTERFACE

2 x CAN (High-/Low-Speed), LIN
With up to two CAN High Speed channels, one CAN Low Speed channel, and a LIN channel, depending on the device variant, a wide variety of applications can be addressed by the USB-to-CAN V2 – in both the industrial and the automotive sectors.


VARIANTS

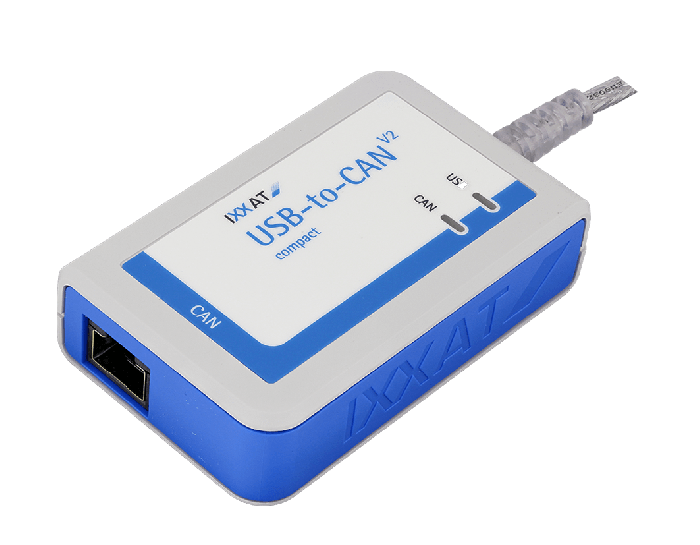

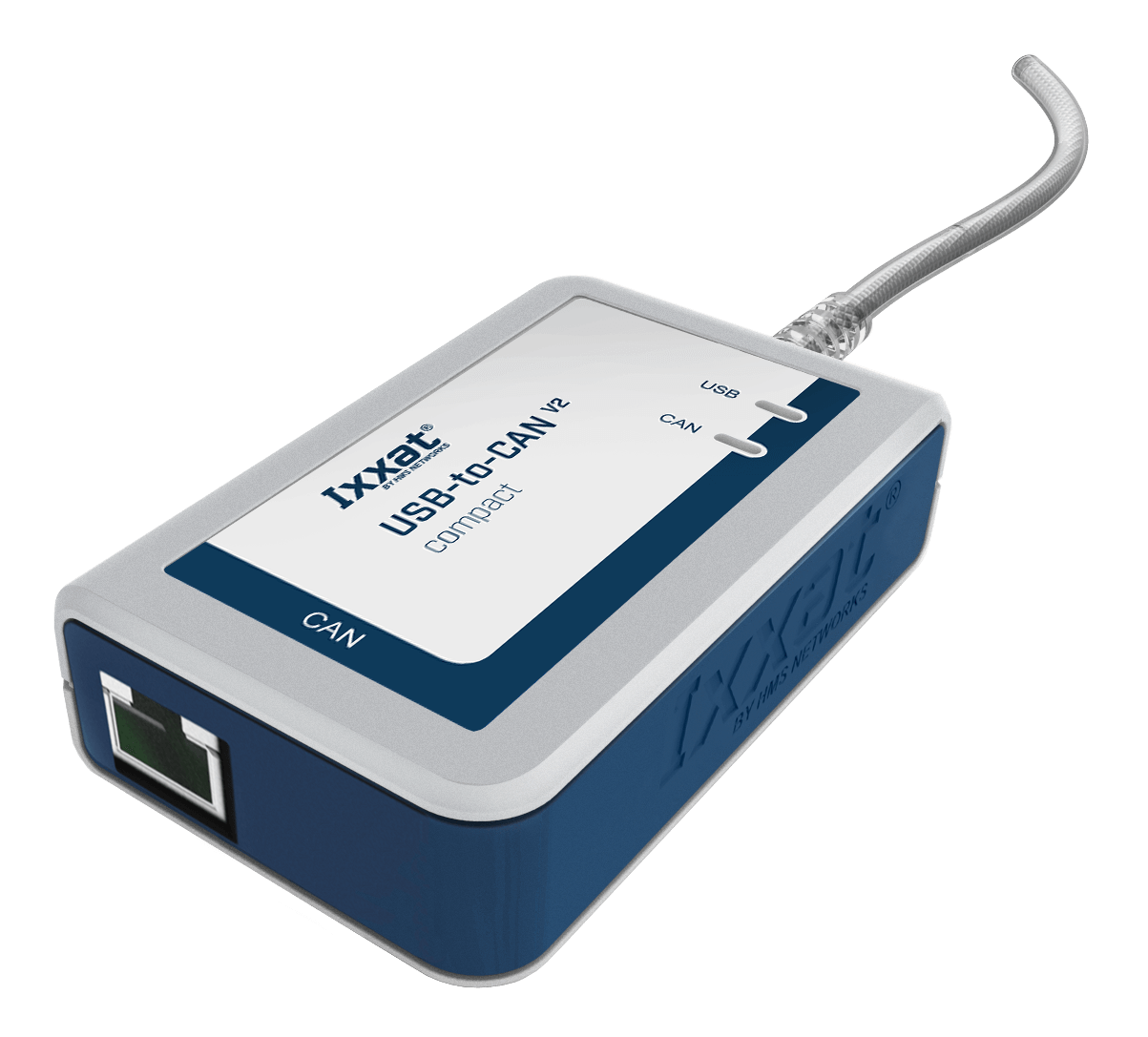

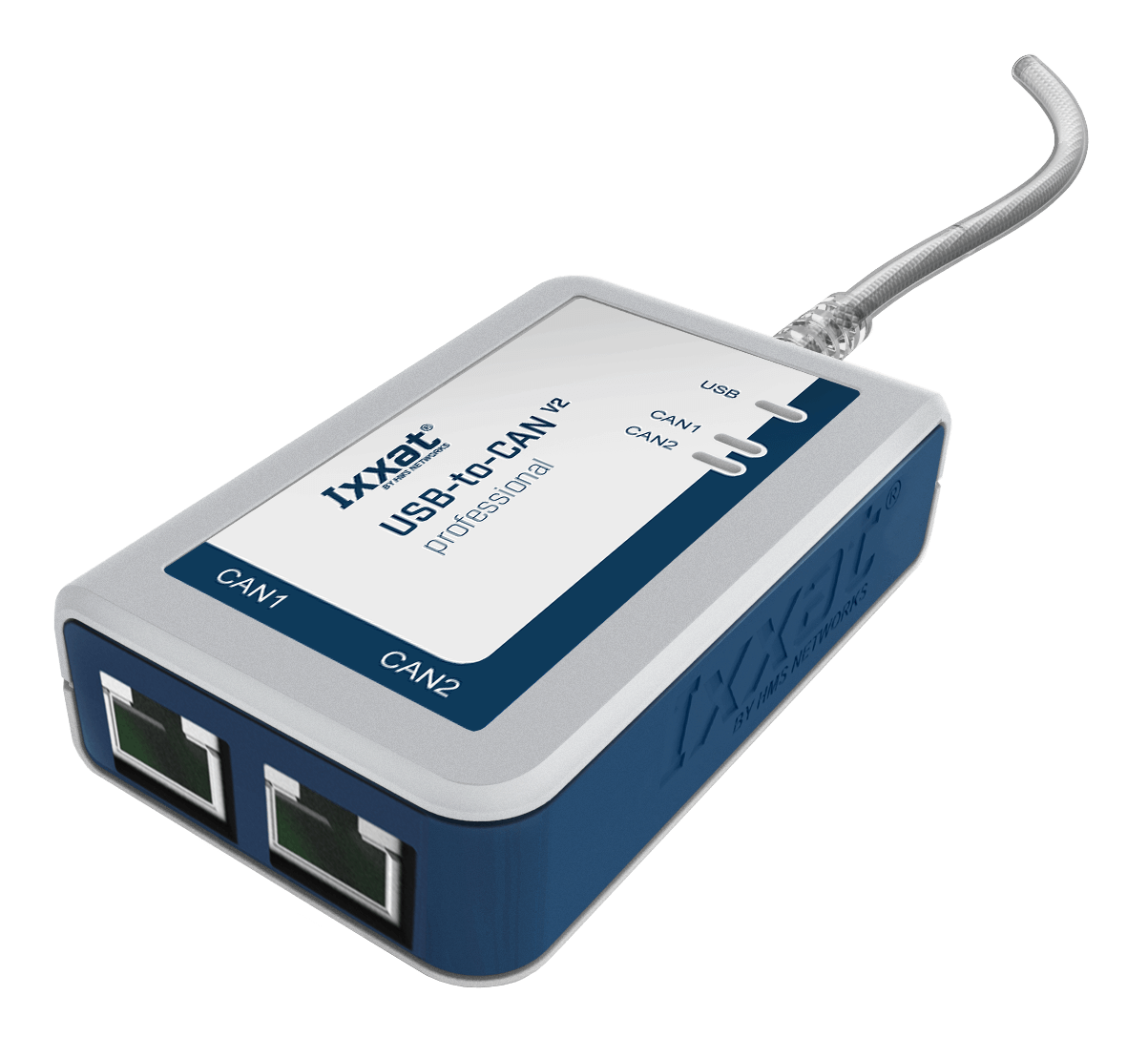

The USB-to-CAN V2 is available in different variants. In the USB-to-CAN V2 compact variant, the CAN connection is implemented as a D-SUB 9 plug or alternatively as an RJ45 connector. For devices with two CAN interfaces, these are implemented as RJ45 connectors. Adapter cables to sub-D9 plugs are included with the devices.

The IXXAT USB-to-CAN V2 embedded is designed without a housing, with or without a slot board and adapted USB cable for installation into a computer. Additional options include galvanically isolated CAN interfaces, bulk variants, and support for ISO 11898-3 low-speed CAN and LIN. LIN communications are supported in either LIN master or LIN slave mode. As LIN slave, the interface responds automatically to master requests it receives.
The response data is updated through the PC API using a buffer. In master mode, the master calls are processed by the PC application. Incoming LIN messages are forwarded to the application with a timestamp, master request, response, and status information.


HIGH PERFORMANCE AND FLEXIBILITY

By using powerful hardware and connecting over USB 2.0 Hi-Speed (480 MBit/sec), the USB-to-CAN V2 interfaces achieve very high data throughput with minimum latency and low power consumption. This allows them to provide the reliable, loss-free transmission and receipt of messages in CAN networks at high transmission rates and bus load. The messages are also timestamped and can be filtered and buffered directly in the USB-to-CAN V2.

Due to its extremely interesting price and compact size, the USB-to-CAN V2 interface is ideal for use in series products and in combination with the canAnalyser for development, service, and maintenance tasks.

Its newly developed, rugged housing permits easy customer-specific adaptation (custom design / brand labeling).

All USB-to-CAN V2 variants are supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite.


CONTENTS OF DELIVERY

. USB-to-CAN V2 interface in the compact, embedded, professional, or automotive variant
. 2 x RJ45 to Sub-D9 adapter cable (only USB-to-CAN V2 professional/automotive)
. Manual
. CAN driver VCI for Windows XP, Windows 7, Windows 8, Windows 10
. Simple "canAnalyser Mini" CAN bus monitor

Product Comparison

USB Interfaces

 simplyCAN
Ixxat simplyCAN
USB-to-CAN compact
USB-to-CAN V2
USB-to-CAN FD
USB-to-CAN FD
Programming interface

Simple, 1 USB-to-CAN adapter can exchange data with exactly 1 application.

Comprehensive, with many possibilities to support various requirements of the application and the message exchange – multiple interfaces in one application, multiple applications use one interface.

Special API for demanding applications.

Comprehensive, with many possibilities to support various requirements of the application and the message exchange – multiple interfaces in one application, multiple applications use one interface.

Special API for demanding applications.

CAN FD support.

Additional APIsC#, Python.NET, Java, Labview, ….NET, Java, Labview, …
Operating systems

Windows, Linux

Same API for Windows and Linux

Windows, Linux, Real-time OS, …

VCI/ECI/Socket-Interface

Windows, Linux, Real-time OS, …

VCI/ECI/Socket-Interface

Galvanic isolation
ApplicationsDiagnosis, configuration, commissioningControl applications, real-time applications, diagnosis, configuration, commissioningControl applications, real-time applications, diagnosis, configuration, commissioning
Protocol supportCAN High-Speed

CAN High speed

CAN Low speed

LIN

CAN High speed

CAN Low speed

LIN

CAN FD

BitratesCiA standard bitratesAny bitrate (10 kbps - 1 Mbps)

Any bitrate (10 kbps - 1 Mbps)

CAN FD up to 10 Mbps

User-defined bitratesno
Maximum Bus Load50 - 60 %100 %100 %
Interfaces CAN1 x Sub-D9, CiA standard pinning

Depending on product version:

1 and 2 x Sub-D9, CiA standard pinning

RJ45 (with Sub-D9-Adapter)

Depending on product version:

1 and 2 x Sub-D9, CiA standard pinning

RJ45 (with Sub-D9-Adapter)

Interfaces USBUSB 1.1 Full Speed (12 Mbps)USB 2.0 Hi-Speed (480 Mbps)USB 2.0 Hi-Speed (480 Mbps)
DesignCaseCase / Embedded / PluginCase / Embedded
Additional softwareFree bus monitor software for Windows and LinuxFree bus monitor software
canAnalyser mini for Windows
Free bus monitor software
canAnalyser mini for Windows
Special featuresNo driver installation necessary,
"Plug & Play" for Windows 10 and Linux.

API also supports all other HMS CAN / CAN FD interfaces.

Setting of any CAN bit rate is supported.

API also supports all other HMS CAN / CAN FD interfaces.

Setting of any CAN bit rate is supported.

PC bus interfaceUSB 2.0, Hi-Speed
Microcontroller32 bit
CAN controllerInternal; CAN 2.0 A/B
CAN baudrates10 kBit/s ... 1 Mbit/s
CAN high-speed transceiverTI SN65HVD251D
CAN low-speed transceiver (1)TJA1055T
LIN transceiver (1)TJA1020
LIN protocol (1)V1.3 and V2.0
LIN baudrate (1)max. 20 kBaud
Galvanic isolationoptional, 1 kV, 1 sec.
Power supply5 V, max. 500 mA via USB port
Temperature range-20°C ... 70°C
Fieldbus connectionaccording to CiA 303-1
CertificationCE, EN 55022:2010, EN61000-6-1:2007

. Cost-effective and extremely versatile
. Common driver interface for easy exchange of the PC interface type
. For industrial and automotive applications
. Galvanic isolation optional

Order numbers / variants

Variants /
Features
CAN
HS
ports
CAN
LS
ports
LIN portsFieldbus
galv.
isolated

D-SUB 9

RJ45Order number
compact1  XX 1.01.0281.12001
 1  X X1.01.0281.12002
 1   X 1.01.0281.11001
embedded (1)1  XX 1.01.0282.12001
professional2  X X
(incl. D-SUB 9
adapter cable)
1.01.0283.22002
automotive2 (2)11 (3)X X
(incl. D-SUB 9
adapter cable)
1.01.0283.22042

(1) PC installation via slot board and internal USB cable
(2) One channel via software between ISO11898-2 and ISO11898-3 switchable
(3) LIN master / slave mode via software switchable



Accessories

TypeOrder number
Sub-D9 Connector with CAN Termination1.04.0075.03000
CAN cable1.04.0076.00180
Y CAN cable1.04.0076.00001
