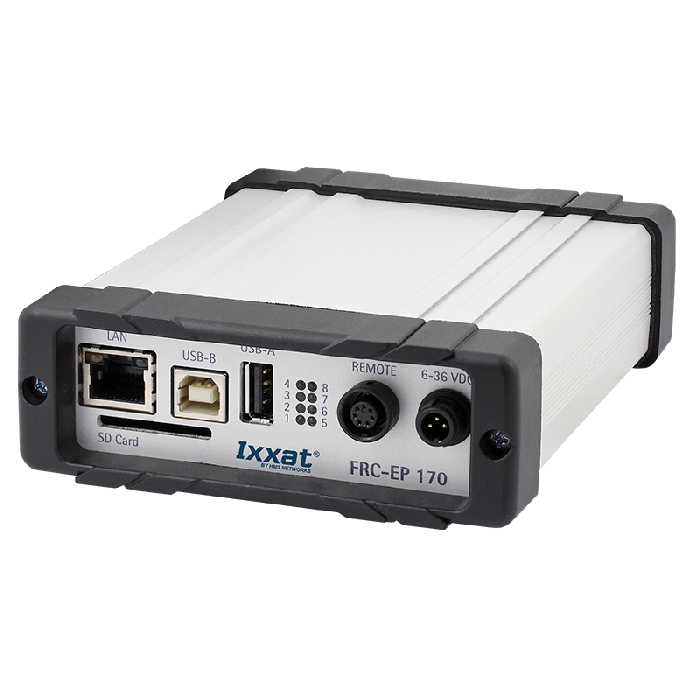

HIGHLIGHTS
- Compact device
With FlexRay support or as CANonly variant- Up to 6 CAN (FD) channels in one device
- Only a few µs delay of frames in classical gateway applications
- Optional with internal WLAN (WiFi)
- Compatible to the Ixxat CAN@Net Generic Ethernet Protocol
| Dimensions (L x W x H) | 142 x 113 x 40 mm |
| Protection class | IP42 |
| Weight | Approx. 390 g |
| Operating temperature | -40 °C to +80 °C |
| Power supply | 6-36 V DC |
| Current consumption | Typ. 320 mA at 12 V |
| Housing material | Aluminum |
| Relative humidity | 10-95 %, non-condensing |
| Host system | Power PC, 256 MByte RAM, 256 MByte Flash |
| Ethernet | 10/100 MBit/s, RJ45 |
| USB | 2.0 high-speed device, USB-B 2.0 high-speed device, USB-A |
| FlexRay communication controller | 2 x Freescale MFR 4310 |
| FlexRay transceiver | NXP TJA1080 |
| CAN transceiver CAN-FD | Texas Instruments TCAN334GDCN |
| CAN transceiver high-speed | Texas Instruments SN65HVD251 |
| CAN transceiver low-speed | NXP TJA1054T |
| CAN bus termination resistor | High-speed/CAN-FD: none Low-speed: RTH=RTL=2 k Ohm |
| LIN transceiver | NXP TJA1020 |
| K-LINE transceiver | Vishay SI9243AEY |
| System startup time | < 5 sec from power-on |
| Order number | Product name | Galvanic isolation | FlexRay A/B | CAN interface count (total) | CAN high speed | CAN low speed (C) | CAN FD (B) | LIN | EtherCAT (slave) | Analog in | Digital in/out (A) (D) | Digital in/out (A) (E) | Ethernet 10/100 Base-T | USB 2.0 device | USB 2.0 host | SDHC slot | Internal WiFi |
| 1.13.0142.01002 | FRC-EP170 CANonly | no | 0 | 4 | 4 | 1 | 0 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 0 |
| 1.13.0142.01302 | FRC-EP170 Plus CANonly | no | 0 | 6 | 6 | 1 | 2 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 0 |
| 1.13.0142.01402 | FRC-EP170 WLAN CANonly | no | 0 | 4 | 4 | 1 | 0 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 1 |
| 1.13.0142.01502 | FRC-EP170 WLAN Plus CANonly | no | 0 | 6 | 6 | 1 | 2 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 1 |
| 1.13.0142.00002 | FRC-EP170 | no | 1 | 4 | 4 | 1 | 0 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 0 |
| 1.13.0142.00302 | FRC-EP170 Plus | no | 1 | 6 | 6 | 1 | 2 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 0 |
| 1.13.0142.00402 | FRC-EP170 WLAN | no | 1 | 4 | 4 | 1 | 0 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 1 |
| 1.13.0142.00502 | FRC-EP170 WLAN Plus | no | 1 | 6 | 6 | 1 | 2 | 1 | 0 | 0 | 4 | 0 | 1 | 1 | 1 | 1 | 1 |
(A) Input or output per software switchable
(B) 6/8 CAN in total, thereoff max. 2/4 CAN-FD capable
(C) 4/6/8 CAN in total, thereoff max. 1 Low-Speed CAN capable
(D) 4 digital inputs/outputs (5 V TTL)
(E) 4 digital inputs (max. 34 V), 4 digital outputs (max. 34 V, 1 ampere)
