IXXAT CIP Safety Originator / Target

FLEXIBLE PROTOCOL STACKS FOR IMPLEMENTING SAFETY COMMUNICATION


• Modular design enables perfect adaptation
• Easy implementation and certification
• Developed according to IEC 61508:2010 for applications up to SIL3 or Performance Level PLe

The IXXAT CIP Safety Software can be used for implementing CIP Safety Targets (slaves) and CIP Safety originator (master) devices based on EtherNet/IP or Sercos. When using Sercos as a non-secure communication protocol, all necessary adaptation modules for the connection to the Sercos stack or the Sercos IP are available. Getting started with the CIP Safety technology is simplified by the included PC demo, showing the capabilities and operation of a target and originator device.

Supported standards
CIP Safety specification Edition 2.16

Supported platforms
PC demo, TÜV pre-certified and CIP Safety conformance tested on PXA255 and ARM Cortex-M3

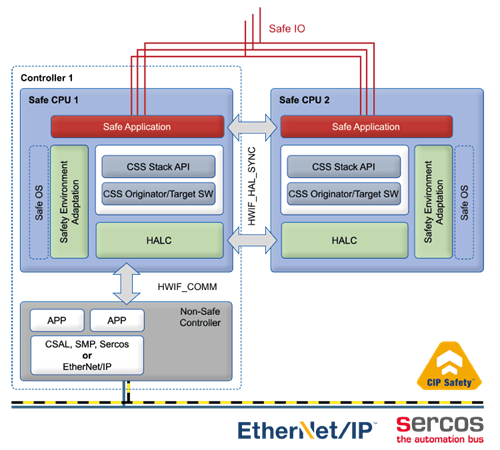

CIP Safety software target architecture

Support
HMS offers technical support within the scope of an extra charged maintenance contract. This includes technical support and consultation regarding the use of CIP Safety preferably by e-mail or the direct support by a developer at HMS or at customer site.

Technical support
Consultation regarding the usage of CIP Safety as well as concept and specification questions for safety relevant product or system solution.

Hardware and software development services
As development partner we support you at the implementation and portation of CIP Safety, at the development of safety applications and safety hardware as well as at the certification. At this, you can benefit from our comprehensive CIP Safety know-how and our competence in the development of safety hardware and software.

• Operating system independent - Runs with and without an operating system
• Supports CIP Safety on Sercos and EtherNet/IP
• Supports parallel CIP safety connection for Originator and Target
• Designed according to IEC 61508 for applications up to SIL-3
• Interfaces enable porting to different hardware and software platforms
• Simplified integration and re-certification on any target systems via included unit test suites and Safety Manual

Order codeDescription
1.02.0501.20000CIP Safety Target for EtherNet/IP
1.02.0501.20100CIP Safety Originator for EtherNet/IP
1.02.0500.20000CIP Safety Target for Sercos
1.02.0500.20100CIP Safety Originator for Sercos
