The board is supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite. A detailed software support overview can be found here.
| PC bus interface | PCI express (V1.1) |
| PC address range | Plug & Play |
| Interrupts | Plug & Play |
| CAN interface | 1 CAN channel; CAN FD or CAN 2.0 A/B; Sub-D9 plugs according to CiA 303-1, galvanic isolation (1 kV, 1 sec.) |
| Power supply | 3.3 V DC, 400 mA typ. |
| Temperature range | 0 ºC ... +70 ºC |
| Certification | CE, FCC |
| Size | Approx. 65 x 105 mm (available as standard and low-profile version) |
- Economically priced passive board (no microprocessor on board)
- One CAN channel (High-Speed CAN or CAN FD)
- Galvanic isolation of the CAN interface
- Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
- Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
| CAN FD ports | Galv. iso. | Order numbers | Optional expansions |

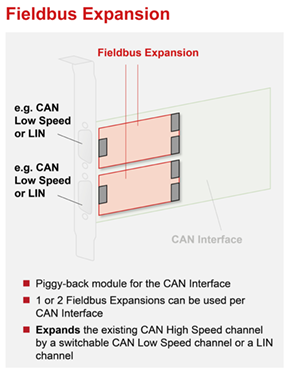

| 1 | X | 1.01.0231.12010 | 1 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
