WATERPROOF
The DTM06-12SA connector ensures a waterproof connection with our IP67 enclosure
PLUG & PLAY
Expose the CANedge CH1/CH2 outside your IP67 enclosure with minimal effort
STANDARD DB9
Use all our CANedge DB9 adapter cables with your CANedge IP67 enclosure
OVERMOLDED
Quality DB9 overmold ensures top flexibility & durability in harsh environments
SOLID CABLES
Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
1Y WARRANTY
We offer a 1-year warranty on all our products

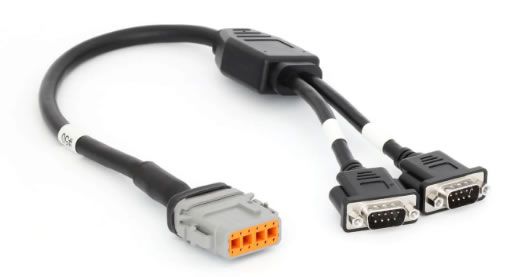

About the adapter cable

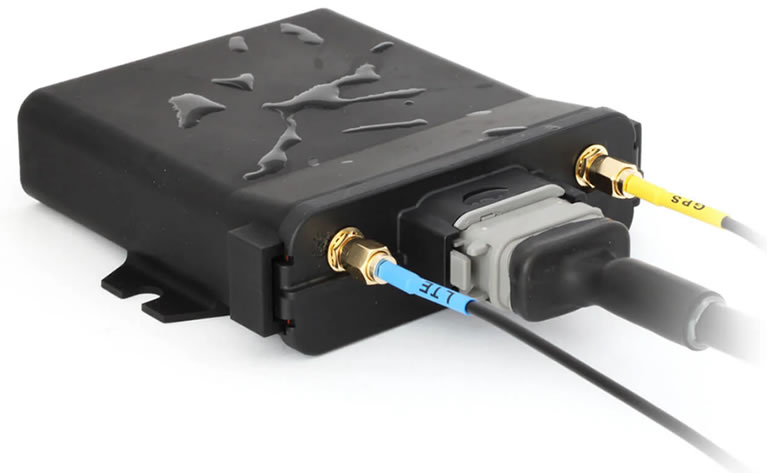

The DTM06-12SA-DB9/DB9 is designed specifically for use with the CANedge IP67 enclosure, which allows you to easily make your devices dust-tight and waterproof.
The IP67 enclosure exposes an IP67 DTM06-12SA connector and you can easily create your own custom wiring harness e.g. using our DTM06-12SA connector kit. However, in many use cases you will want to protect the CANedge, while still being able to use our wide range of DB9 adapter cables. This DTM06-12SA-DB9/DB9 adapter lets you achieve exactly that by exposing the CANedge CH1/CH2 connectors/pinout for plug & play connections.
USE CASES
Below are use cases examples where the DTM06-12SA-DB9/DB9 adapter is useful:

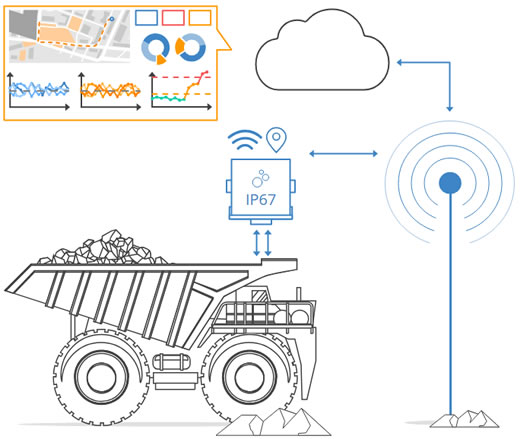

Mixed fleet data logging & testing
Need to log J1939 data from mixed heavy-duty vehicle fleets?
In many aftermarket telematics use cases it is necessary to deploy CANedge devices across a fleet of mixed heavy-duty vehicles, often requiring a number of different adapter cables. In such cases it can be highly practical to deploy the CANedge in the IP67 enclosure with the DTM06-12SA-DB9/DB9 adapter as it allows for leveraging the full range of DB9 adapter cables available for the CANedge, without having to create custom wiring harnesses for multiple different vehicle connectors.
| GENERAL | |
|---|---|
| Adapter Cable Length | 50 cm |
| Adapter DB9 Pins | In accordance with CiA 303-1 |
| Compatibility | High Speed CAN Bus (ISO 11898-2) incl. e.g. CAN FD, SAE J1939, NMEA 2000 |
| Cable Thickness | 22 AWG (0.50 mm2) |
| Connectors | 9-pin D-sub (DB9) male to IP67 DTM06-12SA (female) |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 180G |
DTM06-12SA-DB9/DB9 pinout
| Function | DB9 Male CH1 | DB9 Male CH2 | DTM06-12SA |
| 5V Supply Output | 1 | 1 | |
| LIN2 VBAT | 9 | 2 | |
| GND | 3, 6 | 3, 6 | 3 |
| GND | 4 | ||
| VCC | 9 | 5 | |
| VCC | 9 | 6 | |
| CAN1-L | 2 | 7 | |
| CAN1-H | 7 | 8 | |
| LIN1 Data | 4 | 9 | |
| CAN2-L | 2 | 10 | |
| CAN2-H | 7 | 11 | |
| LIN2 Data | 4 | 12 |
