Arm Compiler for Embedded FuSa (Cortex-A, Cortex-R, Cortex-M)

The certification of safety end-products requires a compiler toolchain used in development to be qualified according to appropriate functional safety standards. The process of qualifying these tools known as ‘Tool Qualification’ or ‘Tool Validation’ can be time-consuming and expensive process. Moreover, it doesn’t offer any differentiation to the end-product. While end-users have to be responsible for the overall tool qualification process, vendors of development tools can make this process much easier by offering tools that are qualified to appropriate safety standards.

Arm Compiler for Embedded FuSa is a qualified C/C++ toolchain that has been assessed by safety-accredited certification body, TÜV SÜD. The qualified toolchain is suitable for developing embedded software for safety markets including automotive, industrial, medical, railways and aviation.

With a TÜV certificate and a comprehensive Qualification Kit, Arm Compiler for Embedded FuSa greatly simplifies the overall ‘Tool Qualification’ process allowing end-users to focus on their end-product development.

Arm Compiler for Embedded FuSa is qualified for developing software that meets the highest level of safety integrity for the following standards:

  • IEC 61508 (Industrial) – SIL 3
  • ISO 26262 (Automotive) – ASIL D
  • EN 50128 (Railways) – SIL 4
  • IEC 62304 (Medical) – Class C

For other safety standards, many of which have been derived from IEC 61508, the Qualification Kit provides the key information required by end-users need to perform ‘Tool Validation’.

Safety qualification

Each release of the qualified Arm Compiler goes through extensive testing and a qualification process. The qualification covers the toolchain binaries:

  • Compiler
  • Assembler
  • Linker
  • Librarian
  • Image conversion and disassembly tool

Standard C/C++ libraries are included in the product but excluded from the qualification. An optional Certified C Library is available to license separately with specific versions of qualified Arm Compiler.

TÜV Certificate

Every qualified Arm Compiler release has a Certificate from TÜV SÜD. The Certificate is accompanied by a TÜV assessment report which provides assurance that the processes used to develop the toolchain are in accordance with the safety standards stated in the Certificate.

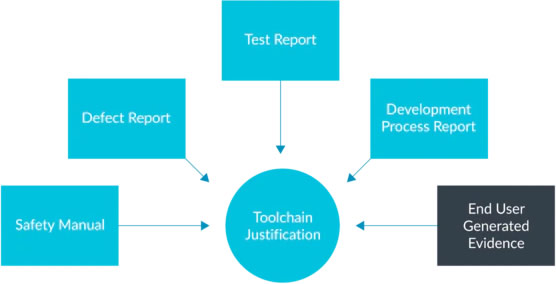

Qualification Kit

The Qualification Kit provides vital safety information about the toolchain operation, recommended usage, and diagnostic capabilities.

It includes:

  • Safety Manual - Defines the safety boundary of the toolchain.
  • Defect Report - Describes the known safety-critical defects.
  • Development Process - Documents the process used to develop the safety toolchain.
  • Test Report - Documents the test results from language conformance tests used in qualification.



Long-term support and maintenance

Safety systems are getting increasingly complex and need to be reliable, highly predictable, even as the product ages, and finally be consistent throughout its lifetime. To achieve this, safety developers require a toolchain that is stable and has minimal change which reduces risk and overhead costs due to re-validation.

Arm Compiler for Embedded FuSa is derived from, but different to, the standard Arm Compiler for Embedded product. Each safety branch is hardened by defining a safety boundary and stable feature set prior to qualification.

Each safety branch is maintained for 5 years from market entry and receives regular maintenance updates for safety-critical defects. The updates are qualified and accompanied by a TÜV Certificate and an updated Qualification Kit. Along with Arm's expert technical support, this provides customers with confidence that their projects can be supported for many years.

For customers who need extra assurance and peace of mind, Arm offers bespoke premium support and maintenance services that can be tailored to their needs.



Safety branch releases

Introducing Arm Compiler for Embedded FuSa 6.16 LTS, the next-generation safety toolchain

The Arm safety toolchain, Arm Compiler for Embedded FuSa 6.16LTS is the successor of the existing Arm Compiler 6.6 for Functional Safety.

The Arm Compiler for Embedded FuSa toolchain brings to qualification:

  • Support for the latest Arm architectures and processors, for example, Cortex-A78AE, Cortex-A76AE, Cortex-A65AE, Cortex-R52, Cortex-52+, and Cortex-M55.
  • Significant investment in optimizations (performance and code density)
  • New toolchain features to support modern automotive and safety use cases
  • Enhancements for existing IP support

As with all our safety branches, Arm Compiler for Embedded 6.16LTS also offers:

  • Long-term maintenance guarantee with extended support options
  • TÜV Certificate that provides endorsement for use in safety development at the highest SIL and ASIL levels for safety standards such as:
    • ISO 26262 (Automotive),
    • IEC 61508 (industrial),
    • EN 50128 (railways), and
    • IEC 62304 (medical)
  • Qualification Kit that provides vital information on safe usage of the toolchain.
  • Compatibility with Arm safety software:
    • Arm Certified C Library
    • Arm FuSa Run-Time System (FuSa RTS), and
    • Arm Software Test Libraries (STLs)

Read the blog, Safety without compromise: Arm releases latest compiler for FuSa applications, to find out more.

Where can I use Arm Compiler for Embedded FuSa 6.16LTS?

Arm Compiler for Embedded FuSa 6.16LTS is recommended for new safety projects. If development has started with the standard Arm Compiler 6.16 toolchain, then migration to the new Arm Compiler for Embedded FuSa 6.16LTS is simple and straight-forward.

Projects using Arm Compiler 6.6 for Functional Safety could migrate to the new Arm Compiler for Embedded FuSa 6.16LTS toolchain, provided the safety project is not in its final stage. Migration guidance can be found in the Qualification Kit and user documentation of the safety toolchain. You can also contact our support team for expert guidance.

ParticularsArm Compiler for Embedded FuSa 6.16 LTS Arm Compiler 6.6 for Functional SafetyArm Compiler 5.06 for Functional Safety
Release detailsVersion
6.16 LTS (6.16.1, 6.16.2, …)6.6.X (X = 1, 2, 3, …)5.06uX (X=3, 4, …)
Latest release
6.16.16.6.45.06u6
Market entry202120172016
MaintenanceActive maintenance
Until 2026Until 2022Until January 2021
Extended maintenance or Bespoke support servicesVV V
FeaturesArm Architecture support
Armv8, Armv7, Armv6-MArmv8, Armv7, Armv6-MArmv7, Armv6, Armv5, Armv4
Language support
C90, C99, C++98, C++03, C++11, C++14C90, C99, C++98, C++03, C++11C90, C99, C++03, C++11
DocumentationUser documentation
Arm Compiler for Embedded FuSa 6.16LTSArm Compiler 6.6 LTMArm Compiler 5.06uX
TÜV Certificate
VVV
Qualification Kit
VVV
Optional add-onsCertified Arm C Library
VV -
Compatible Arm softwareArm FuSa Run-Time System
VV -
Arm Software-Test Libraries
V - -
